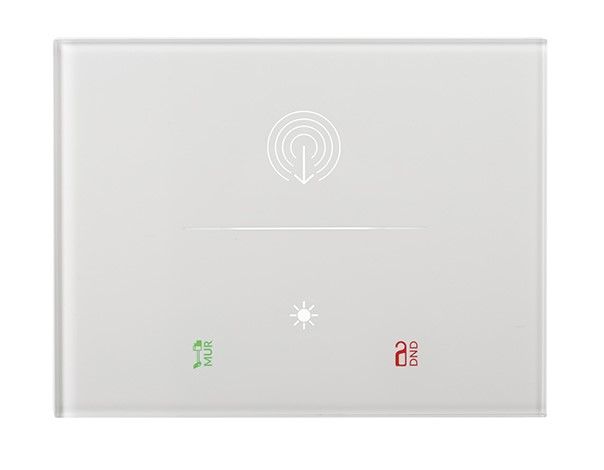

EELECTRON 9025PTH303L01 PLEXIGLASS PLATE FOR TRANSPONDER POCKET 9025 - LINE SERIES - RGB

EELECTRON 9025PTH303L01 Product Description

The EELECTRON 9025PTH303L01 product is a control and management device for home and industrial automation systems, based on the KNX protocol. This device is designed to be integrated into English, German or Italian built-in boxes, both with 2 and 3 modules.

Mechanical Characteristics

The dimensions of the device are 96 x 126 x 36 mm, making it compatible with different configurations of built-in boxes. The device frame measures 96 x 126 x 36 mm for the 3-module version.

Power supply and connections

The device is powered via the EIB/KNX bus with a voltage between 21 and 32 Vdc. The digital connections are designed for potential-free contacts, with a maximum connection cable length of 10 meters (intertwined).

Inputs and Functionality

The device includes digital and analog inputs. The digital inputs are intended for clean contacts, while the analog input can be connected to NTC temperature probes, such as the models TS01A01ACC (-20°C to +100°C), TS01B01ACC (-50°C to +60°C) and TS01D01ACC (-40°C to +125°C).

Control Functionality

The 9025PTH303L01 integrates a two-stage thermostat for controlling two distinct areas, with an integrated PI controller for controlling heating, cooling, valves and fan coils. The device also has a capacitive bar with swipe function for implementing programmable KNX functions and a freely configurable RGB LED bar for displaying states or other quantities available on the KNX bus.

Logic and Programming

The device includes 32 logical blocks for creating logical or threshold expressions, as well as complex expressions with conditional algebraic operators. Predefined algorithms are available for proportional temperature and humidity controls, and the calculation of the dew point. In addition, the device integrates the “Virtual Pocket Logic”.

Conditions of Employment

The device operates in a temperature range from -5°C to +45°C and can be stored in a temperature range from -20°C to +55°C. The maximum permitted relative humidity is 90% (non-condensing).
