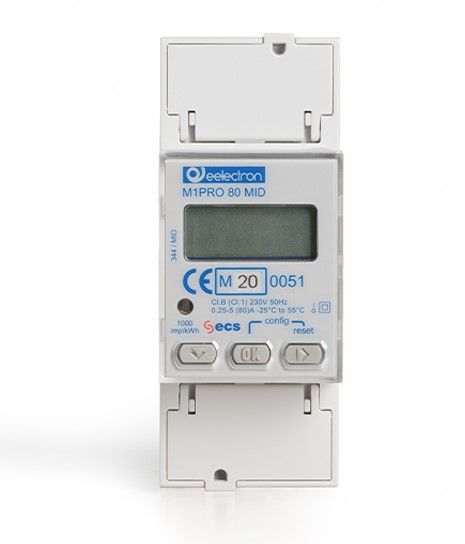

EELECTRON PM10E02IRE SINGLE-PHASE DIGITAL ENERGY METER – DIRECT CONNECTION 80 A – MID

The device PM10E02IRE – Single-phase Digital Energy meter – Direct connection 80 A integrates all the measurement functions necessary to monitor a single-phase electrical installation:

• 0.25-5 (80) A, Class B, 230 VAC 50 Hz, -25 °C … +55 °C, 4 Quadrants, 2 Tariffs.

• Active Energy Class B (according to EN-50470) and Reactive Energy Class 2 (according to IEC 62053-23)

• Direct connected (up to 80 A)

• Backlighted LCD display and 3 push-button keys (to read Energies, V, I, PF, F, P, Q and to configure some parameters)

• Display with 8 digits.

• Self supplied (by the input voltage itself)

• DIN modules width (36 mm)

• 2 Tariffs controlled by a 230 VAC digital input

• 2 S0 standard low voltage pulse outputs MID certified
