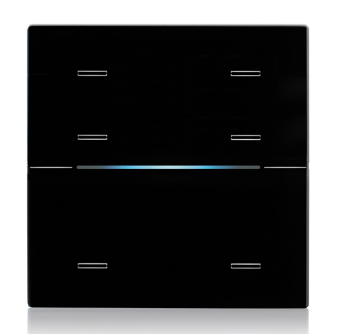

EELECTRON 9025GM06L03 SINGLE GLASS LINE 6 CH. CO2 KNX HUMIDITY AND TEMPERATURE SENSOR FOR ROOM

EELECTRON 9025GM06L03 Product Description

The EELECTRON 9025GM06L03 device is a multisensor controller integrated into the KNX 9025 series, designed for environmental control and management in residential, hotel and commercial buildings. This device combines CO2, humidity and temperature detection capabilities, making it a complete option for climate control and home automation.

Technical characteristics

The 9025GM06L03 is a wall-mounted device, available with a black glass finish, that integrates perfectly into any environment.

• Dimensions: The dimensions of the device are 96 x 126 x 36 mm, allowing it to be installed in English, German or Italian boxes of 2 or 3 modules.
• Power supply: The device is powered via the EIB/KNX bus with a voltage between 21 and 32 Vdc.
• Digital and Analog Inputs: It has digital inputs for potential-free contacts and an analog input for connecting an NTC temperature probe (codes TS01A01ACC or TS01B01ACC).
• Maximum Cable Length: The maximum length of the connecting cables is 10 meters (twisted).

Integrated sensors

• CO2 sensor: The device includes an integrated CO2 sensor that directly detects CO2 levels in the environment.
• Humidity Sensor: Manages the relative humidity reading and allows threshold control for humidification and dehumidification.
• Temperature Sensor: Detects the ambient temperature and can be integrated with a second NTC temperature probe for additional measurements.

Control Functionality

• Two-Stage Thermostat: Includes two two-stage thermostats with integrated PI controllers for controlling two distinct areas, controlling heating, cooling, valves and fan coils.
• Capacitive buttons: It has 6 capacitive buttons for managing on/off commands, dimmers, shutters and blinds, as well as for executing and learning scenarios and sequences of objects.
• RGB LED: An RGB LED bar on the front displays the temperature, humidity and CO2 status, or other quantities available on the KNX bus.

Programming and Communication

• Configuration through ETS®: The device can be configured through the ETS® application program, allowing a complete customization of the functionalities.
• KNX Data Secure Communication: Supports the KNX Data Secure protocol for secure and reliable communication within the KNX network.
