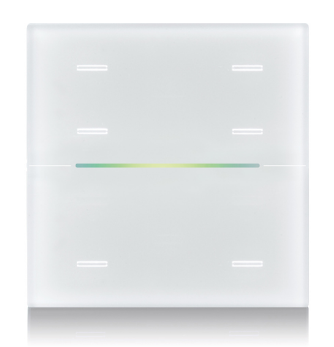

EELECTRON 9025GM06L01 SINGLE GLASS LINE 6 CH. CO2 KNX HUMIDITY AND TEMPERATURE SENSOR FOR ROOM

EELECTRON 9025GM06L01 Product Description

The EELECTRON 9025GM06L01 device is a KNX multisensor controller designed for monitoring and controlling various environmental parameters. This device is part of the KNX 9025 series and stands out for its versatility and integrated functionality.

Integrated sensors

The device includes three main sensors:

• Temperature: measures the room temperature accurately.
• Humidity: manages the reading of the relative humidity of the environment and allows threshold control for humidification and dehumidification devices.
• CO2: measures the level of carbon dioxide using an integrated probe, designed to directly detect the CO2 data.

Control Features

The device is equipped with:

• 2 2-Stage Thermostats: they allow the control of two distinct areas, with integrated PI controllers for controlling heating, cooling equipment, valves, 6-way valves and 2 - and 4-pipe fan coils.
• Digital and Analog Inputs: includes a 2-way connector on the back side that can be configured as a digital or analog input, allowing the connection of an additional NTC probe for a second temperature measurement.

User Interface and Communication

The device has:

• 6 Capacitive Keys: for managing on/off commands, dimmers, shutters and blinds, executing and learning scenarios and sequences of objects.
• RGB LED bar: on the front side, freely configurable to display states or other quantities available on the KNX bus.
• KNX Communication Interface: compatible with the KNX Data Secure protocol and configurable through the ETS® application program.

Installation and Dimensions

The device is designed to be installed on:

• Italian box 2 modules
• 2-module German or English box

Power supply and connections

The device is powered via the EIB/KNX bus with a voltage between 21 and 32 Vdc. The maximum length of the connecting cables is 10 meters (twisted) for the digital inputs and up to 20 meters for the temperature probe.
