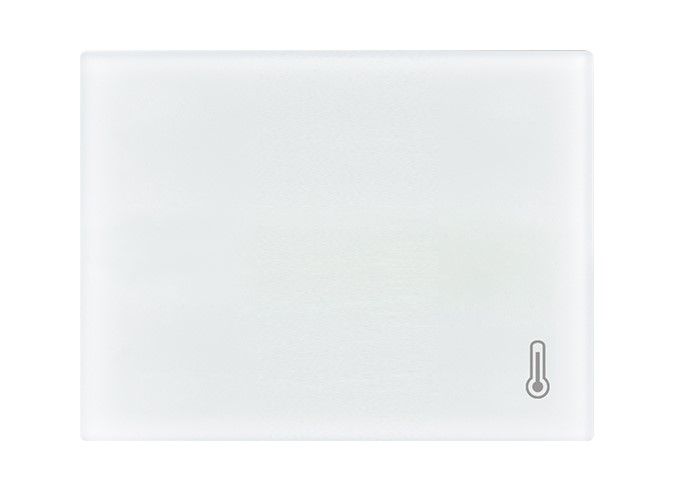

EELECTRON 9025GS300A01 SINGLE GLASS FOR 9025 TEMPERATURE SENSOR - white

<p/the EELECTRON 9025GS300A01 product is a control and management device for environments, designed to be integrated into the KNX home and industrial automation system.

Technical characteristics

The device can be mounted in boxes of 2 or 3 modules, compatible with the main standards (Italian, German, English, etc.). The dimensions of the device are 96 x 126 x 36 mm for the 3-module version and 96 x 96 x 36 mm for the 2-module version.

Power supply and connections

The power supply is via the EIB/KNX bus with a voltage between 21 and 32 Vdc. The digital connections are designed for potential-free contacts, with a maximum connection cable length of 10 meters (intertwined).

Inputs and Outputs

• Digital inputs for clean contacts.
• Analog input for temperature probe, compatible with NTC probes such as TS01A01ACC (-20°C to +100°C), TS01B01ACC (-50°C to +60°C) and TS01D01ACC (-40°C to +125°C).
• Configurable outputs for controlling lights, shutters, climate and other programmable command and control functions.

Control Functionality

The device integrates a two-stage thermostat with a PI controller for controlling heating, cooling, valves and fan coils. It has 32 logical blocks to create complex logical and algebraic expressions, including proportional temperature and humidity controls and dew point calculation.

User Interface

On the front side there is a capacitive bar with swipe function for implementing programmable KNX functions. In addition, a freely configurable RGB LED bar is available for displaying states or other quantities available on the KNX bus.

Configuration and Communication

The device is configurable through the ETS® application program and can communicate with the KNX Data Secure protocol, ensuring safe and efficient management of environments.
