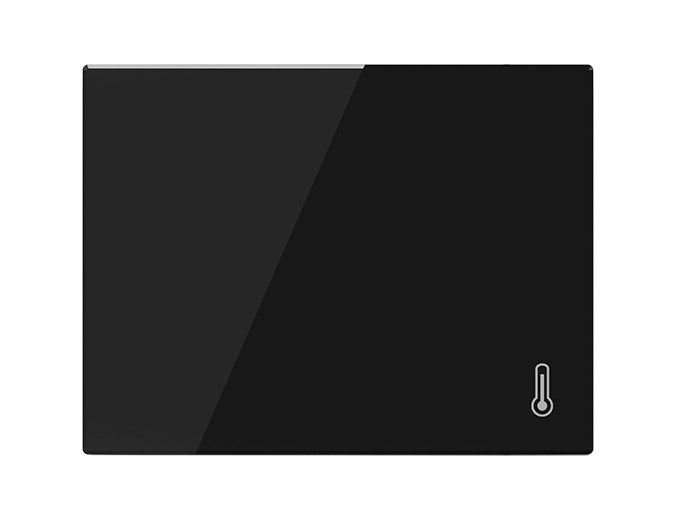

EELECTRON 9025GS300A03 SINGLE GLASS FOR TEMPERATURE SENSOR 9025 - 3 mo

<p/the EELECTRON 9025GS300A03 product is an integrated solution for temperature control and measurement, specifically designed to be used in the context of home automation and building automation.

Technical characteristics

This device is compatible with the KNX protocol, which ensures efficient and secure communication within the automation system.

Dimensions and Assembly

The device is designed to be mounted in boxes of 2 or 3 modules, complying with the main installation standards (Italian, German, English, etc.). The dimensions of the device, without the plate, are 96 x 126 x 36 mm for the 3-module version [1] [4>.

Power supply and connections

The device is powered via the EIB/KNX bus with a voltage between 21 and 32 Vdc. Digital connections are designed for potential-free contacts, with a maximum connection cable length of 10 m (intertwined) [1] [2>.

Temperature Probe

The device can be combined with different temperature probes of the TS01 series, such as the TS01D01ACC, which offers a measurement range from -40°C to 125°C. These probes are specifically designed to be connected to KNX devices and offer precision and reliability in measurements [1] [3] [4>.

Interface and Functionality

The solution includes a capacitive bar with swipe function for implementing programmable KNX functions. In addition, a freely configurable RGB LED bar is available for displaying states or other quantities available on the KNX bus. The device also integrates programmable logic with 32 logical blocks, allowing complex logical and algebraic expressions to be created [2>.

Applications

The EELECTRON 9025GS300A03 product is ideal for various applications, including climate control in residential and commercial environments, the management of heating and cooling systems, and integration with other building automation devices.
