EELECTRON 9025GTH303L03 GLASS PLATE FOR TRANSPONDER POCKET 9025 - LINE SERIES - RGB BLACK GLASS

EELECTRON 9025GTH303L03 GLASS PLATE FOR TRANSPONDER POCKET 9025 - LINE SERIES - RGB BLACK GLASS

MT Code
ELC_9025GTH303L03
Manufacturer Code
9025GTH303L03
Brand
EELECTRON
EELECTRON
extra discount
Description
<p/the EELECTRON 9025GTH303L03 product is a KNX device designed for integration into building management systems, particularly suitable for residential and commercial applications.

Key Features

This device is characterized by a modular structure, compatible with English, German or Italian 3-module boxes.

Dimensions and Assembly

The dimensions of the device are 96 x 126 x 36 mm, making it compatible with different types of standard electrical boxes.

Food and Communication

The power supply is via EIB/KNX bus with a voltage between 21 and 32 Vdc. The device supports communication with the KNX Data Secure protocol.

Inputs and Outputs

The digital inputs are designed for potential-free contacts (clean contacts) with a maximum connection cable length of 10 meters (twisted). There is also an analog input for temperature probe, compatible with specific NTC probes.

Access Control Functionality

The 9025GTH303L03 device is not specifically an access control, but can be integrated with other 9025 series devices to manage access control functions. However, if we consider the 9025 series in general, the access control devices use RFID — MIFARE® technology and can be configured with ETS® to communicate with the KNX Data Secure protocol.

User Interface

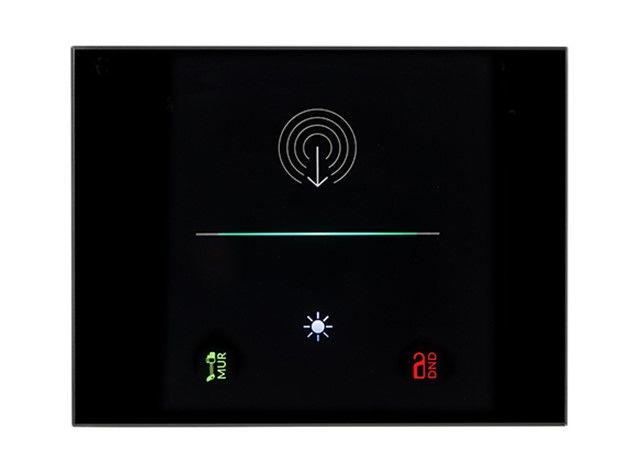

The upper part of the glass is backlit, allowing you to illuminate the room number or a personalized logo. At the bottom there are 3 backlit capacitive buttons, freely configurable for functions such as CAMERA LIGHTS and MUR and DND settings.

Visual and Sound Signals

The device includes an RGB bar that indicates the recognition status of the card with different colors:

  • Recognized card: Green
  • Incorrect system code: Orange
  • Unrecognized card ID: Red
  • Wrong Card Date (validity expired): Yellow
  • Wrong weekday: Purple
  • Wrong Time of Day: Blue-Cyan
The device also integrates an activatable buzzer with an ETS parameter for the sound notification of anomalies.

BLE technology

Some 9025 series devices include an antenna with BEACON BLE (Bluetooth Low Energy) function, compatible with iBeacon® and Eddystone®, allowing messages to be sent to mobile devices equipped with an appropriate app.

Data Sheet
Codice Produttore 9025GTH303L03
Brand EELECTRON
