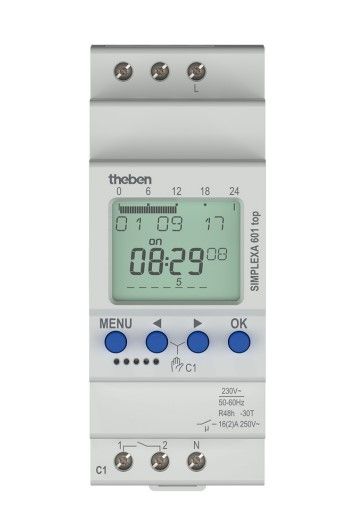

THEBEN 6010130 SIMPLEXA 601 top

Features

• Basic daily and weekly programmable 1 channel time switch clock.
• Manual or Permanent ON/OFF switching.
• 42 memory switching cells.
• 48hr battery reserve - rechargeable.
• Big LCD display.
• Operation via 4 button control with intuitive programming software
• Short texts and pictographs in the display.
• First day of the week can be set, e.g Monday = 1.
• Easy programming of switching times to single days and fixed groups of days.
• Automatic summer-/winter time correction (daylight saving time).
• Glow lamp load; 2600 W.
• Halogen lamp load; 2600 W.
• Fluorescent lamp load - uncorrected; 2600 VA.
• series corrected; 2600 VA.
• parallel-corrected; 650 VA (72 uF).
• Compact fluorescent tubes (EVG) 600 W.
• LED lamps (< 2 W); 30 W.
• LED lamps (> 2 W); 300 W.
• 9 Language settings; English, Espanol, Italiano, Norsk, Suomi, Svenska, Russian, Hebrew + Deutsch.
• PIN code security.
• Permissible ambient temperature - 30 °C 5 + 55 °C.
• Time accuracy: ± 0,5 s/ day (25deg C).
• Transparent captive cover.
• Changeover contacts (potential-free) 16 (6) A / 250V~.
• DIN rail mounting.
• Screw terminals.
