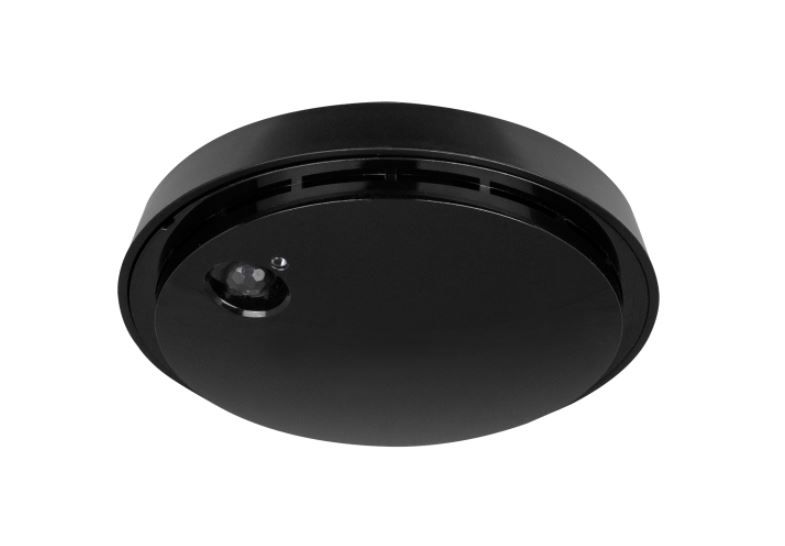

ELSNER 70696 Sewi KNX L-Pr- jet black RAL 9005 KNX Brightness S

MT Code: ELS_70696
Manufacturer Code: 70696
Brand: ELSNER

The SEWI KNX L-Pr sensor, produced by Elsner Elektronik, is a versatile device designed for integration into the KNX building bus system. This sensor combines the measurement of brightness with the detection of the presence of people in the rooms.

Key Features

The SEWI KNX L-Pr sensor is equipped with several key features:

Brightness Measurement: The sensor measures brightness values in the range from 0 to 2,000 lux, with a resolution of 1 lux. These values can be used to control switched outputs based on set limits.
Presence Detection: The presence of people is detected using a passive infrared (PIR) method, with a coverage angle of about 94° x 82° and a range of about 5 meters.

Logic and Calculations

The sensor includes:

Logic Gates: 8 AND ports and 8 OR ports, each with 4 inputs. All switching events, as well as 16 logic inputs in the form of communication objects, can be used as inputs for logic gates. The output of each port can be optionally configured as 1 bit or 2 x 8 bit.
Multifunction Modules: 8 multifunction modules (computer) to modify input data through calculations, condition queries or data point type conversion.

Configuration and Integration

The sensor is configured using the KNX ETS software.

Technical Data

The following technical data are relevant for the installation and use of the sensor:

House and Color: The house is made of plastic, available in white similar to signal white RAL 9003 (baseboard)/white gray RAL 9002 (cover) and jet black RAL 9005.
Mounting: The sensor can be mounted on the surface, on the wall or on the ceiling.
Dimensions: Approximately 105 mm x 32 mm.
Degree of protection: IP 30.
Weight: About 50g
Ambient Humidity: 5..95% RH, non-condensing.
KNX Nominal Voltage: 30 V DC SELV.
KNX Power Consumption: Maximum 10 mA.
