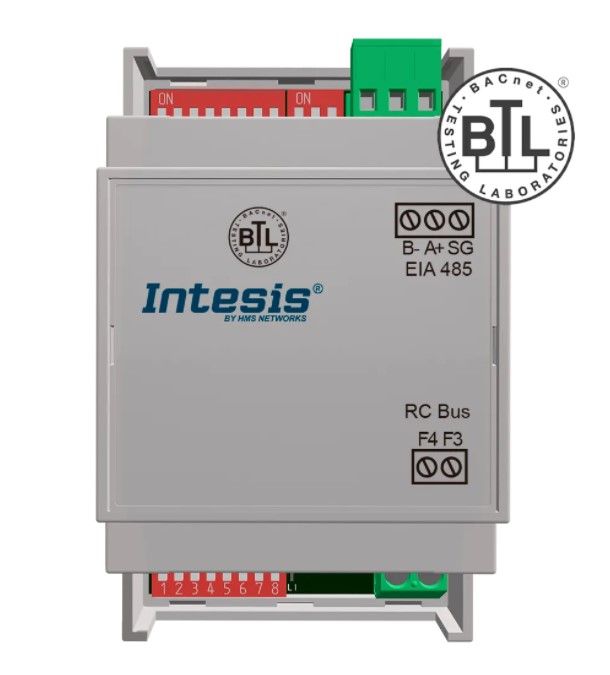

INTESIS INBACSAM001R100 Samsung NASA unit at BACnet MSTP interface - 1 unit

The Inthesis INBACSAM001R100 gateway is designed to integrate Samsung NASA air conditioning systems with BACnet MS/TP networks, offering full bidirectional communication.

Key Features

• It allows the control and supervision of a Samsung internal unit via BACnet MS/TP on the wired controller communication bus (F3/F4).
• Support for the BACnet MS/TP physical layer (EIA-485/RS-485).
• It does not require an external power supply.
• It allows simultaneous control of the unit through wireless and wired controls and BACnet, depending on the indoor unit.
• Samsung wireless and wired controls can be disabled to allow only BACnet control.
• LED indicators to easily verify BACnet MS/TP port communication.

Installation and Configuration

Installation is quick and easy, with the option of mounting the gateway on a DIN rail, on a wall, or inside the air conditioner's indoor unit. The configuration is via onboard DIP switches.

Capacity and Compatibility

• It can integrate one or more Samsung air conditioning units and associated elements.
• Up to 16 units can be connected to the same gateway, although they are treated as a single unit.
• Different commands are not allowed for different AC units connected to the same gateway.
• It provides up to 49 BACnet objects available as signals from Samsung AC units.

Dimensions and Weight

• Dimensions: 93 x 53 x 58 mm (3.7” x 2.1” x 2.3”).
• Weight: 1 lb.
