ARCUS-EDS 90100051 RPTF2

ARCUS-EDS 90100051 Product Description

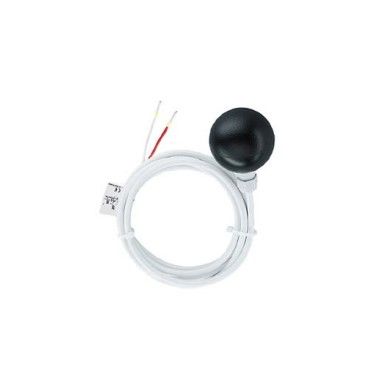

The ARCUS-EDS 90100051 product, referred to as RPTF2, is a high-precision temperature sensor designed for indoor applications. This device is part of the PT1000 range of temperature sensors offered by ARCUS-EDS.

Key Features

The RPTF2 sensor is a pendulum temperature probe, ideal for measuring temperature under different environmental conditions.

Type of Assembly

This sensor is designed to be pendulum mounted, offering great installation flexibility.

Accuracy and Resolution

• Accuracy: ± 0.3°C
• Resolution: ± 0.01°C

Temperature and Humidity Range

• Operating temperature: -20°C to +80°C
• Storage temperature: -20°C to +85°C
• Relative humidity: 0% to 95% non-condensing

Food and Consumption

• Power supply: KNX bus voltage 21-32 VDC
• Power consumption: about 240 mW at 24 VDC
• No auxiliary power required

Protection and Assembly

• Protection class: IP54/65
• Gray ABS plastic case, dimensions 115 x 65 x 55 mm (L x W x H)
• Mounting with 2 screws

Integration with the KNX Bus

The RPTF2 sensor is equipped with an integrated KNX bus coupler, facilitating integration with KNX-based home and industrial automation systems.

Configuration and Control

The configuration and control of the sensor take place through the ETS software (KNX Tool Software), allowing you to set advanced control functions such as signal thresholds and various adjustments.
