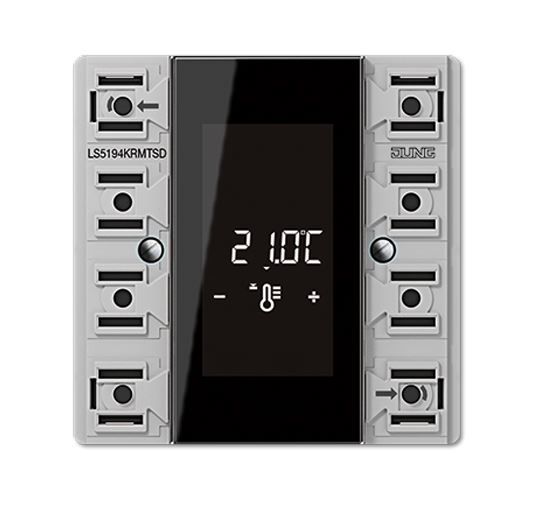

JUNG LS5194KRMTSD RCD compact KNX 4-channel environmental controller module - for complete button group - 4 channels - n. item: LS 504 TSA

Intended use

• Operation of loads, e.g. switching light on/off, dimming, blinds up/down, brightness values, temperatures, recalling and storing light scenarios, etc.
• To be completed with cover kit
• One or two functions per button
• Disable function: disable or change the operating mode of one or all button functions
• Alarm function, optional recognition by pressing any button Room temperature control with setpoint specification
• Feedback measurement and control of room temperature
• Outside temperature display – with external sensor, e.g.Weather station
• All buttons can be assigned button sensor functions or functions for controller operation.
• Integrated room temperature sensor
• Backlit LCD display
• Eight status LEDs: red, green or blue
• Adjustable brightness of status LEDs and LCD
• Connection of extension modules
• It is possible to connect an external sensor (ref. no.: FF NTC, FF 7.8).
• Time display in combination with KNX time coder (in the menu level)
• Button function or rocker function
• Two independent internal controllers for two independent areas – in connection with extension modules
• Display of room or set temperature (°C or °F)
• Medium KNX: TP 256
