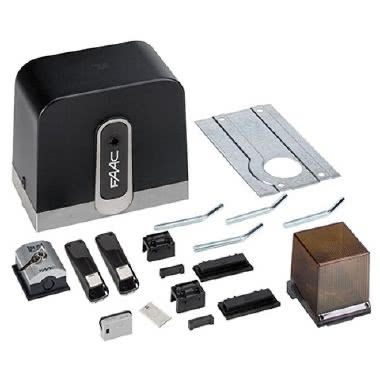

FAAC 1059995 SWIFT KIT 24V SAFE&GREEN Sliding Gate Automation

SWIFT KIT 24V SAFE&GREEN Sliding Gate Automation

Complete kit for the automation of sliding door gates. C720 24V gearmotor for sliding gates up to 400 kg in weight, Product for continuous use and with very high efficiency (> 80%), suitable for condominium gates. Equipped with a safety encoder that detects the obstacle, the gate reverses the maneuver, E721 control board, installed inside the engine, equipped with programming via display, slowdown in opening and closing and quick connection for 3-pin receivers, XF 433 included in the kit or XF 868 on request (optional).

Technical characteristics: Network supply voltage 220-240V~ 50/60 Hz Electric motor 24V brush motor Max power 170 W Max torque 18 Nm Max thrust force 320 N 1:49 reduction ratio Max door width 15 m Sash speed 18 m/min (adjustable) Speed control and motor control Yes — Electronic adjustment Magnetic window Pignone Z28 module 4 Encoder Electronic encoder Force adjustment via electronic board Ambient operating temperature -20°C ÷ +55°C Degree of protection IP44 Weight 8 Kg Dimensions (LxDxH) 304 x 180 x 282 mm Max door weight 400 Kg Frequency of use 100% Embedded E721 electronic equipment
