ZENNIO ZIO-RQUAD8 RailQuad8 KNX 8IN, DIN

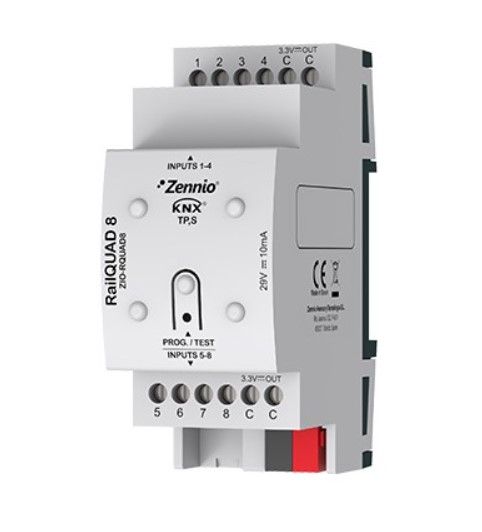

The RailQuad 8 input module, code ZIO-RQUAD8, is designed to be mounted on DIN rails and offers 8 versatile and highly configurable analog-digital inputs.

Key Features

The individual inputs can be configured to suit different applications, including use as binary inputs for sensors and potential-free dual contact buttons, as inputs for temperature probes or as inputs for motion sensors.

Input Configurations

• Binary inputs for potential-free dual contact sensors and buttons
• Inputs for temperature sensors
• Inputs for motion sensors
• Integration with temperature control systems for heating and cooling

Technical Specifications

The module is powered by a voltage of 29VDC and has a current consumption of 6.9mA. The connection is made through a TP1 type connector with a cable cross-section of 0.50 mm².

Power and Connection

• Power supply: 29VDC
• Current consumption: 6.9mA @ 29VDC
• Connection type: TP1 bus connector, cable cross section 0.50 mm²

accessories

Specific accessories are available for the RailQuad 8 module, including temperature probes and motion sensors.

Available Accessories

• Temperature probes
• Motion sensors
