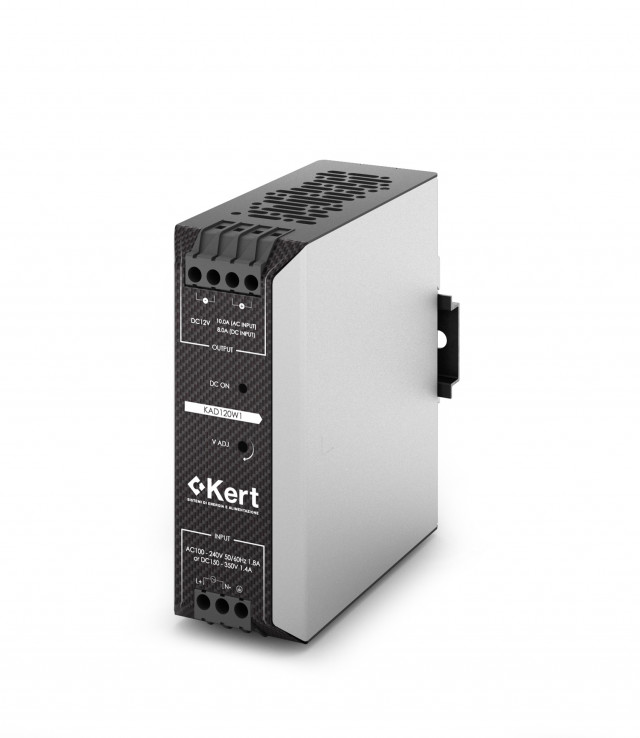

KERT KAD120W1 12Vdc 10A. 120W industrial power supply
- MT Code
- KRT_KAD120W1
- Manufacturer Code
- KAD120W1
- Brand
- KERT
![extra sconto di benvenuto](https://images.ctfassets.net/g6z2so3d6429/1nCII0xdbZgmEJPENaWasr/e37d4000d07fb07137d1d55247893c74/Benvenuto2024_.jpg?w=540&fm=webp&q=80)
Description
The single-phase power supplies of the KAD120 series come with
a compact design with minimal dimensions compared to
at the power supplied.
Extended range power supply, 100-240Vac 50/60Hz,
allow use in all environmental situations.
High efficiency over 90% on the 120W range.
High ambient temperature range of use with
natural ventilation.
Convenient front adjustment of the output voltage.
Large and accessible connection terminals for connection
some cables.
Available models with clean anomaly contact, with a diode of
integrated redundancy and with circuit protection with resins
special (conformal coating) for use in heavy environments, with
presence of dust, oils and high humidity.
Main Features
- Full Range AC input
- Small size
- Efficiency greater than 90%
- 150 — 350 Vdc DC input
- Adjustable output voltage
- Natural convection ventilation
- Easy and quick installation
- Suitable for installation in heavy environments
- Parallelable with integrated oring diode
Main Applications
- Industrial machines
- Electro-mechanical equipment
- Industrial automation
- Industrial PLC and PC
- Industrial air conditioning
Data Sheet
Codice a barre | 8000002524591 |
---|---|
Codice Produttore | KAD120W1 |
Brand | KERT |
Download
DTS10001A 7Cb1tPtPC7 4
|
1.0 MB |
