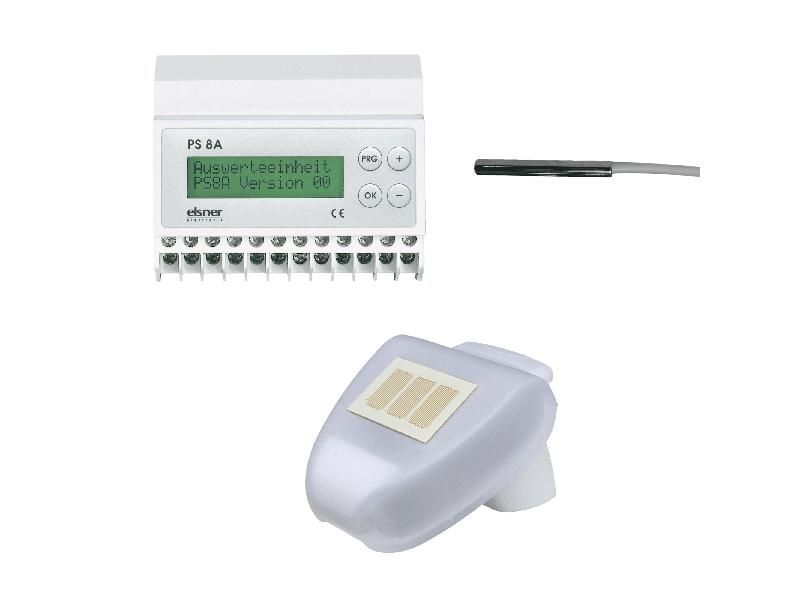

ELSNER 701 PS8A - Meteorological Data Evaluation Unit

ELSNER 701 Meteorological Data Evaluation Unit

The ELSNER 701 weather data evaluation unit is a versatile and reliable device designed to measure and monitor various weather parameters. This tool is ideal for professional applications that require precision and robustness.

Rain Measurement

The integrated rain sensor is equipped with a heater that consumes about 1.2 watts, ensuring that false signals do not occur due to fog or dew. The sensor dries quickly once the rain stops. The “Rain” output is a dry switch contact that can be used as a normally open or normally closed contact, with an additional alarm LED on the board.

Wind Measurement

The wind force is measured electronically, ensuring a silent and reliable recording even during hail, snow and sub-zero temperatures. The sensor also records turbulent air and anabolic winds in the vicinity of the weather station. The wind threshold value can be set using DIP switches inside the enclosure. The “Wind Alarm” output is a dry switch contact with an additional alarm LED on the board.

Alarm and Monitoring Functions

• In the event of a malfunction of the wind sensor, the wind alarm is activated and the power LED in the container blinks. The malfunction is also triggered if there has been no change in the measured wind value within 48 hours.

Technical characteristics

• Container Material: Plastic
• Color: White/translucent
• Mounting: Wall or pole
• Protection Class: IP 44
• Dimensions: Approximately 96 × 77 × 118 mm (W × H × D)
• Ambient Temperature: Operating -30... +50°C, Storage -30... +70°C
• Operating Voltage: 12... 35 V DC (12... 28 V AC)
• Current: 12 V DC: 180 mA, 24 V DC: 90 mA, 14 V AC: 150 mA, 28 V AC: 55 mA
• Maximum Relay Load: Maximum 1 A at 30 V DC
• Wind Measurement Range: 0... 35 m/s

This device is designed to offer a precise and reliable measurement of weather parameters, making it an ideal choice for a variety of professional applications.
