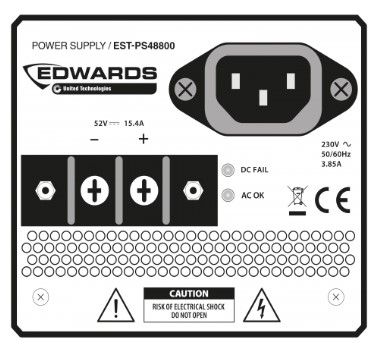

ARITECH FIRE EST-PS48800 Power supply unit. Primary voltage 230Vac/48Vcc 800W

ARITECH FIRE EST-PS48800 Power supply unit. Primary voltage 230Vac/48Vcc 800W

MT Code
ARI_EST-PS48800
Manufacturer Code
EST-PS48800
Brand
ARITECH FIRE
ARITECH FIRE
extra sconto di benvenuto
Description

Power supply unit. 230Vac/48Vcc 800W primary voltage. For use with PSM48 or PSC. CPR EN54-4 Certification

The EST-PSM48 power management module has been designed to manage direct current power coming from power supply units (PSU) and spare batteries. The unit controls the battery charge and distributes power to all voice evacuation system (VES) equipment, with a maximum load of 60 A. When the system uses backup batteries, the power supplied is 3.2 kW (48 V). The unit complies with EN 54-4 standards and also with EN 12101-10 standards (smoke and heat control systems). As the main source of energy, the management module uses external 800 W power supplies (EST-PS48800). As a backup power source, it uses a battery pack with a maximum capacity of 200 Ah. EST-PSM48 controls a bank of 4 VRLA batteries at 12 V. It maintains the charge of the batteries, guarantees the charging parameters taking into account temperature compensation and monitors the resistance of the batteries and the wiring as specified in Annex A2 of the EN 54-4 standard. EST-PSM48 is able to manage a maximum of 4 modules of EST-PS4880 power supplies. The management module ensures safe power distribution and controls the electrical output parameters of each power supply module. The EST-PS48800 power module has been designed to be installed in the EST-PF4 chassis. The elements that make up the power system are designed to be assembled in a 19” rack with a degree of IP30 protection

.
Data Sheet
Codice Produttore EST-PS48800
Brand ARITECH FIRE
