ELMO C10SW Power supply unit for sensors that can be used in addition to the control unit power supply

Power supply unit for sensors that can be used in addition to the power supply unit of the

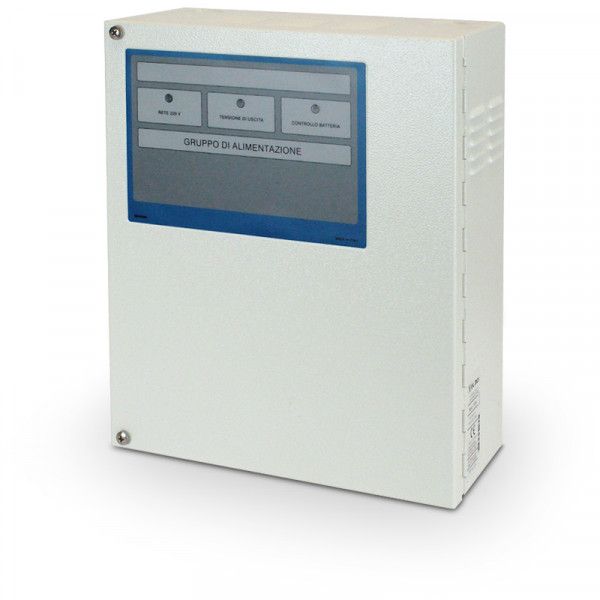

C10SW power supply unit is a power supply unit in a metal container for anti-intrusion and access control applications; it contains a 13.8Vcc/3A switch-type AL3SWJST network power supply and is equipped with sophisticated control circuitry for supplying equipment in the field and charging compatible self-powered sirens. The front panel has 3 signal LEDs for battery control (red color), output voltage (green color) and network presence (green color). It has relay outputs for PRIMARY POWER FAILURE, BATTERY FAILURE and a TAMPER output. It is possible to allocate a 12V/7Ah battery mod. B712G or 12V/18Ah B1812G The small metal container is equipped with tamper protection against opening, while for protection against tearing from the wall, the optional MSW kit is required. C10SW complies with EN 50131-6 level 1 and 2 and environmental class
