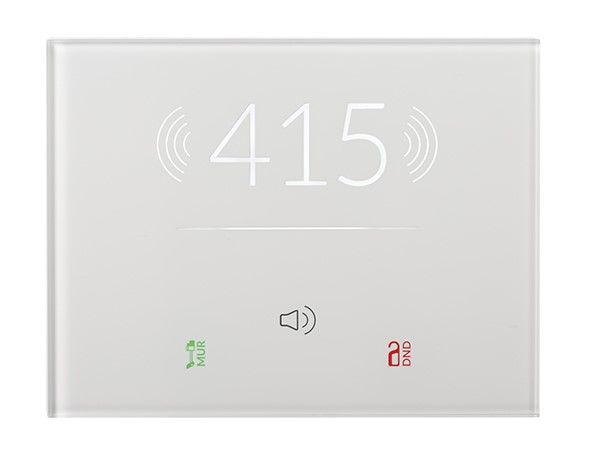

EELECTRON 9025PTR303L01 PLEXIGLASS PLATE FOR 9025 TRANSPONDER READER

<p/the product EELECTRON 9025PTR303L01 is a KNX device intended for integration into domestic and industrial automation systems. This device is designed to be installed in English, German or Italian built-in boxes, both with 2 and 3 modules.

Mechanical Characteristics

The dimensions of the device are 96 x 126 x 36 mm for the 3-module version, while for the 2-module version they are 96 x 96 x 36 mm. The assembly takes place through standard built-in boxes.

Food and Communication

The device is powered via the EIB/KNX bus with a voltage between 21 and 32 Vdc, with a maximum consumption of 30 mA. It supports communication with the KNX Data Secure protocol.

Inputs and Outputs

The 9025PTR303L01 has digital inputs for potential-free contacts, with a maximum cable connection length of 10 meters (twisted). In addition, it includes an analog input for temperature probes, compatible with EELECTRON NTC probes such as TS01A01ACC, TS01B01ACC and TS01D01ACC, covering measurement ranges from -50°C to +125°C.

Control Functionality

The device integrates a two-stage thermostat with a PI controller for controlling heating, cooling equipment, valves and 2- and 4-pipe fan coils. It has 32 logical blocks to create complex logical and algebraic expressions, including proportional temperature and humidity controls and dew point calculation.

User Interface

On the front side there is a capacitive bar with swipe function for implementing programmable KNX functions. In addition, a freely configurable RGB LED bar is available for displaying states or other quantities available on the KNX bus.

Conditions of Employment

The device operates in a temperature range from -5°C to +45°C and can be stored in a range from -20°C to +55°C. The permitted relative humidity is up to 90% (non-condensing).
