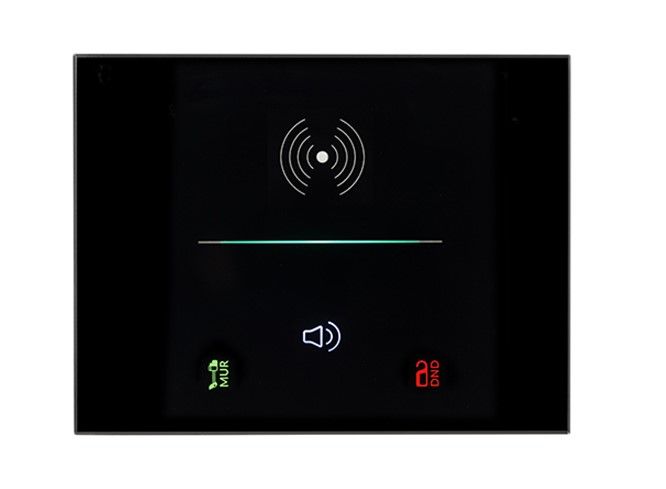

EELECTRON 9025PTR303L03 PLEXIGLASS PLATE FOR TRANSPONDER READER 9025 BLACK

EELECTRON 9025PTR303L03 Product Description

The EELECTRON 9025PTR303L03 device is an innovative component of the 9025 series, designed for integration into the KNX home and commercial automation system. This product is specifically designed to be installed in 3-module built-in boxes, compatible with the main British, German and Italian standards.

Mechanical Characteristics

The dimensions of the device are 96 x 126 x 36 mm, making it compatible with standard built-in boxes. The cover can be customized in white or black glass, offering an elegant and professional finish.

Food and Communication

The device is powered via the EIB/KNX bus with a voltage between 21 and 32 Vdc. Communication takes place through the KNX Data Secure protocol, ensuring secure and reliable data transmission.

Inputs and Outputs

The 9025PTR303L03 has digital inputs for potential-free contacts, with a maximum length of connecting cables of 10 meters (intertwined). In addition, there is an analog input for connecting temperature probes, such as the TS01A01ACC, TS01B01ACC and TS01D01ACC models, which cover a measurement range from -50°C to +125°C.

Control Functionality

The device integrates a two-stage thermostat with integrated PI controller, allowing the control of two distinct areas for heating, cooling, valves and fan coils. The capacitive bar on the front side allows the implementation of programmable KNX functions through swipe gestures.

Visualization and Reporting

The RGB LED bar is freely configurable to display states or other quantities available on the KNX bus. The device also includes a buzzer that can be activated through ETS parameters for the sound notification of anomalies.

Logic and Programming

The 9025PTR303L03 has 32 logic blocks for creating simple or complex logical expressions, using logical, threshold or conditional algebraic operators. You can use predefined algorithms for proportional temperature and humidity controls, or for calculating the dew point. The device also supports 'Virtual Pocket Logic'.

Configuration and Applications

The device can be configured using the ETS® application program, allowing a complete customization of command and control functions. It is particularly suitable for applications in residential and commercial environments, including hotel rooms, where it can manage on/off controls, dimmers, shutters and blinds, as well as other programmable control functions.
