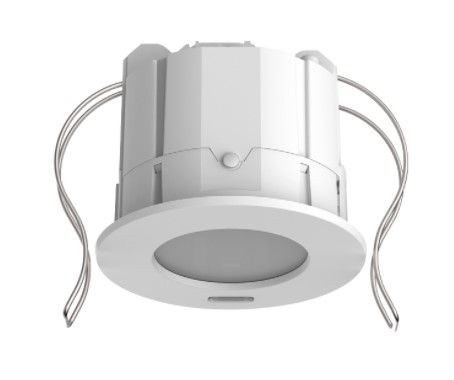

THEBEN 2039100 PLANOSPOT 360 KNX DE WHITE

Function Description

• Passive infrared presence detector for ceiling mounting
• Flat design, with replaceable cover frame in different colors
• 360° square detection range (up to 64 m2) for simple and safe planning
• Automatic control based on presence and brightness for lighting and HVAC
• Two detection zones of different sizes for greater flexibility. Adjustable via parameters or remote control.
• Manual orientation of the detection range (orientation device)
• Mixed light measurement suitable for fluorescent lamps (FL/PL/ESL), halogen and incandescent lamps and LEDs
• 3 adjusted light measurements
• 2 light channels C1, C2 with two light measurements and additional channel C3 without influence on brightness
• Constant light switching or regulation with 2 independent settings and stand-by functionality (orientation light)
• Switching operation with adjustable lighting
• Automatic or semi-automatic operation
• Brightness switching value or programmed value with lux adjustable via parameters, object or remote control
• Teach-In of the brightness switching value or programmed value
• Settable light queue time
• Self-learning queue time adjustable via parameters, object or remote control
• Reduction of queuing time in case of short presence (short-term presence)
• Manual override by telegram or remote control
• 2 presence channels C4, C5, individually parameterizable
• Ability to set insertion delay and queue time
• Local surveillance with selective motion detection
• Setting the room correction factor for adjusting the brightness measurement
• Adjustable sensitivity
• Easier setting of the energy saving option with the new «eco plus» function
• Test mode for checking the function and detection range
• Scenes
• Parallel connection of multiple presence detectors (master/slave or master/master)
• Mounting in hollow floors with springs
• Ceiling mounting possible with visible frame (optional)
• «theSenda S» user remote control (optional)
• «SendoPro» management remote control (optional)
• Installation remote control «theSenda P» (optional)
• The hole diameter for the mounting section is 68 mm
