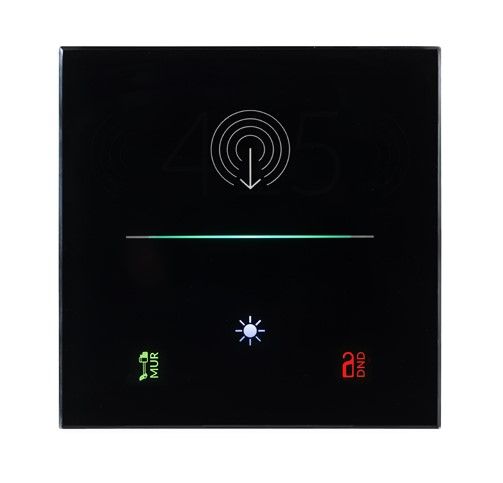

EELECTRON 9025PTH03L03 PLEXIGLASS PLATE FOR 9025 TRANSPONDER POCKET - BLACK

EELECTRON 9025PTH03L03 Product Description

The EELECTRON 9025PTH03L03 product belongs to the 9025 series, a range of capacitive buttons designed for integration into the KNX® home automation system. This device is specifically configured to be mounted in a 3-module box, compatible with British, German and Italian standards.

Technical characteristics

The 9025PTH03L03 button has 10 channels, allowing flexible and customizable control management.

• Dimensions: 96 x 126 x 36 mm
• Assembly: English, German or Italian box of 3 modules
• Power supply: Via EIB/KNX bus with a voltage of 21 ÷ 32 Vdc
• Digital Inputs: For potential-free contacts (clean contacts), with a maximum length of connection cables of ≤ 10 m (twisted)
• Analog Input: For temperature probe, compatible with NTC probes such as model TS01D01ACC

Functionality

The device is equipped with a capacitive bar with swipe function, which allows the implementation of programmable KNX functions. In addition, there is a freely configurable RGB LED bar for displaying states or other quantities available on the KNX bus.

• Configuration: Configurable through the ETS® application program and compatible with the KNX Data Secure protocol
• Logic Blocks: 32 logical blocks are available to create simple or complex expressions with logical, threshold or conditional algebraic operators
• Predefined Algorithms: Including algorithms for proportional temperature and humidity controls, dew point calculation, and other advanced functions

Design and Integration

The 9025PTH03L03 button is available with a black glass cover, ensuring an elegant and modern design that integrates perfectly with any environment. The frames and supports are designed to harmonize the aesthetics of electrical systems.
