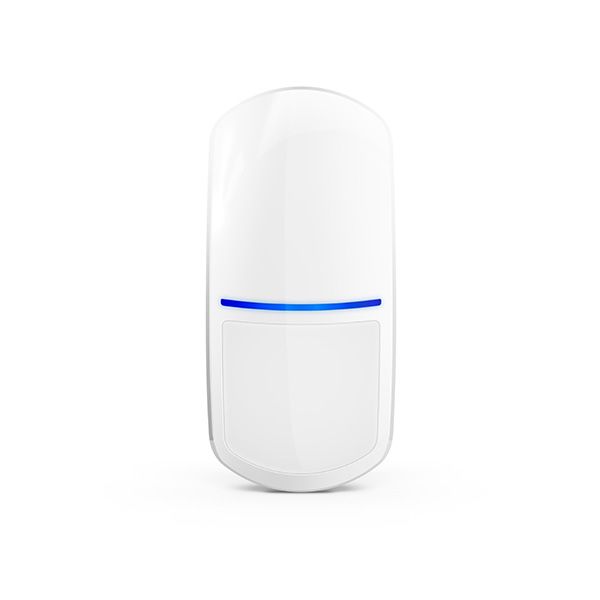

SATEL SLIM-DUAL-PET PIR + MW dual technology motion detector with Pet Immunity (up to 20 kg)

MT Code: SAT_SLIM-DUAL-PET
Manufacturer Code: SLIM-DUAL-PET
Brand: SATEL

Description

PIR + MW dual technology motion detector with Pet Immunity (up to 20 kg)

SLIM-DUAL-PET is the indoor dual technology detector (PIR and microwave in K band 24GHz) of the SLIM series. It has a detection area of 12 m x 13 m with an angle of 90°.

PET models are immune to the movement of animals weighing up to 20 kg. Thanks to this, these detectors can monitor rooms where, for example, a small dog is present, without triggering unwanted alarms.

The detector is equipped with integrated 1.1kΩ balancing resistors.

Description:

complies with the requirements of EN 50131 Grade 2
motion detection via infrared sensor (PIR) microwave sensor (MW)
Adjustable detection sensitivity for both sensors
digital motion detection algorithm
digital temperature compensation
digital filter for processing the signals received from the microwave sensor, which guarantees immunity to false alarms caused by the electrical network and discharge lamps (e.g. neon)
wide-angle lens designed specifically for SLIM Line detectors
immunity to pets up to 20 kg
integrated balancing resistors (2 X 1.1 kΩ)
LED indicator
configurable LED indicator color (4 colors available)
enable/disable LED indicator remotely
supervision of the detection system and the supply voltage
tamper protection against opening of the housing
