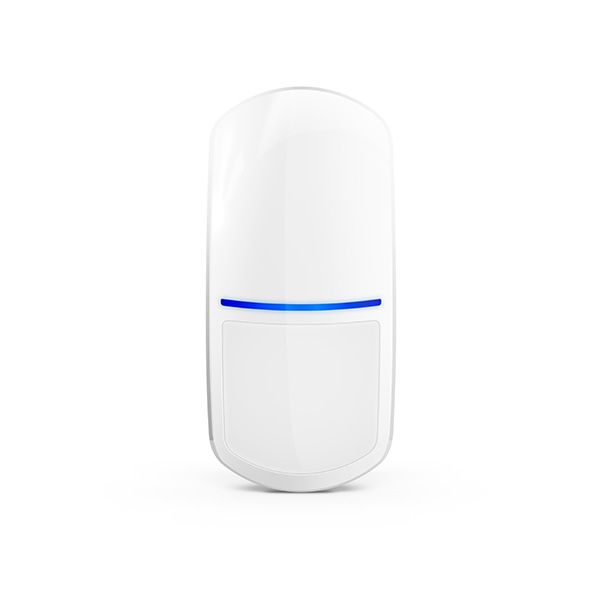

SATEL SLIM-PIR PIR motion detector. Range 15 m x 20 m

MT Code: SAT_SLIM-PIR
Manufacturer Code: SLIM-PIR
Brand: SATEL

Description

PIR motion detector. Range 15 m x 20 m

SLIM-PIR is the indoor PIR detector of the SLIM series. It has a detection area of 15 m x 20 m with an angle of 90°.

The standard lens can be replaced with the LR long-range lens (25 m x 3.6 m) and the CT curtain lens (16 m x 2 m).

The detector is equipped with integrated 1.1kΩ balancing resistors.

The detector can be equipped with a BRACKET-D bracket (not included), with internal cable routing, which allows you to rotate the detector 35° degrees vertically and 90° horizontally.

compliant with EN 50131 Grade 2
motion detection via infrared sensor (PIR)
Adjustable detection sensitivity
digital motion detection algorithm
digital temperature compensation
wide-angle lens designed specifically for SLIM Line detectors
possibility of replacing the wide-angle lens with a curtain lens (CT-CL2) or a long-range one (LR-CL2)
integrated balancing resistors (2 X 1.1 kΩ)
LED indicator
configurable LED indicator color (4 colors available)
Remote activation/deactivation of LED indicator
supervision of the detection system and the supply voltage
tamper protection against opening of the housing
