ELDES EWVXSDW3 Outdoor dual-technology PIR+microwave detector with anti-masking,
- MT Code
- ELD_EWVXSDW3
- Manufacturer Code
- EWVXSDW3
- Brand
- ELDES
![extra sconto di benvenuto](https://images.ctfassets.net/g6z2so3d6429/1nCII0xdbZgmEJPENaWasr/e37d4000d07fb07137d1d55247893c74/Benvenuto2024_.jpg?w=540&fm=webp&q=80)
Description
Outdoor detector with dual PIR+microwave technology with anti-masking, 14 adjustable detection zones, high immunity to false alarms, sensitivity adjustment and pulse counting, adjustable range to m 2, m 5, m 8 and m 12 with selectable opening up to 90 degrees. IP54 housing. White body version with white frame.
PERFORMANCE
- Range m 12 90° angle with adjustable detection beams in the range
- SMDA logic for advanced temperature compensation and immunity to environmental disturbances Rectangular configuration of the
- detection area with pre-cut masking stickers Double conductive pyroelement shielding against disturbances caused by bright lights Active infrared anti-masking
- to detect masking with opaque objects Extremely robust dual
- technology version based on gold-plated OPTEX microwave module

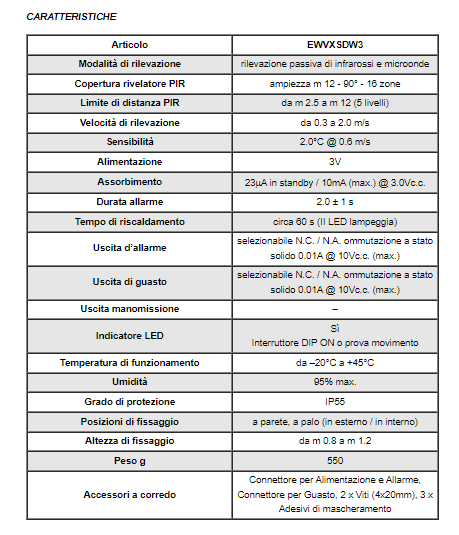

Data Sheet
Codice Produttore | EWVXSDW3 |
---|---|
Brand | ELDES |
