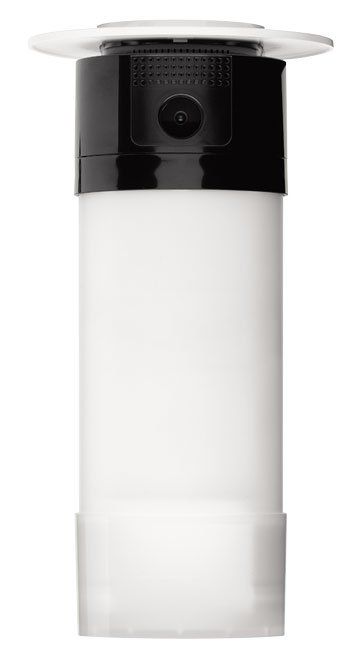

DAITEM SH156AX Pet immune antimask outdoor camera detector

Pet immune antimask outdoor camera deteccharacteristics:

Passive infrared detection principle

Coverage area from 4 to 15 meters at 90°

Detection zone adjustment range 180° (adjustable in 7.5° steps)

Installation height from 0.9 meters to 1.3 meters

External use

RXU15X 3V 3Ah power supply

Autonomy

1 stack block 5 years for 5 image captures on intrusion/year + 10 questions

of image procedure/month (without sound signal)

2

blocks

stacks

without

transponders

hands free

• 10 years for 5 intrusion images/year + 10 requests

of images sent/month (without sound signal)

• 7 years for 5 intrusion images/year + 10 requests

of images sent/month (with sound signal)

with transponder

hands free

5 years for 5 intrusion images/year + 10 requests

of images sent/month (without sound signal)

Video and audio format of the movie • VGA color 640 x 480 encoded using H264 codec

• Field of vision H = 95° V = 70°

• Mono, 4 KHz encoded in AAC

Radio links • 433.050 – 434.790 MHz, 10 mW max, Duty cycle: 10%

• 868 – 870 MHz, 25 mW max, Duty cycle: 0.10% – Rx: category 2

Fixing • to the wall • to a pole (optional accessory for pole mounting)

Operating temperature from -25 °C to +60 °C

Average humidity rate from 60% to 100%

Mechanical protection ratings IP54 / IK07 (except housing window)

Self-protection upon opening and detachment

24-hour protection anti-masking function; activation after 60 seconds of masking

Dimensions (H x W x D) 211 x 108 x 121 mm

Weight 556 g (without battery pack)

Accessories • 2 pairs of zone masks including 1 additional spare kit

• 3 lenses, range: 4 metres, 12 metres, 15 metres

• 2 watertight adhesive foams: flat wall, wall with roughness

Maximum number of hands-free transponders that can be combined 16tor
