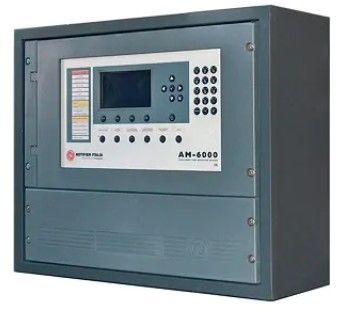

NOTIFIER AM6000.4N PE microprocessor fire detection unit

Microprocessor fire detection control unit for individually addressed analog devices. equipped with 4 loops expandable up to 16. Each loop allows the connection of 99 detectors and 99 ingres in/out modules. The control unit is expandable with a maximum of 3 4-loop cards (LIB600N) and is equipped with a graphic LCD display with 16 lines and 40 columns and an alphanumeric keyboard. It allows the configuration of 400 logical groups programmable using AND operators. OR. OF THE. XGRP. etc. and 150 zones. Historical archive of 999 events in non-volatile memory. For partial system management, it is possible to connect the LCD6000N/A/G series remote display panels. Configurable by keyboard or by PK6000 software. Possibility to manage the control unit using supervision software with an optional SIB600-OEM serial communication interface. CEI-ABI communication protocol, or on request, MOD-BUS, via the 81007-801N interface connected to the SIB600-OEM card. Designed for installation in a 19" rack cabinet. Certified in accordance with EN 54-2. EN 54-4 and EN 54-13 System Certification
