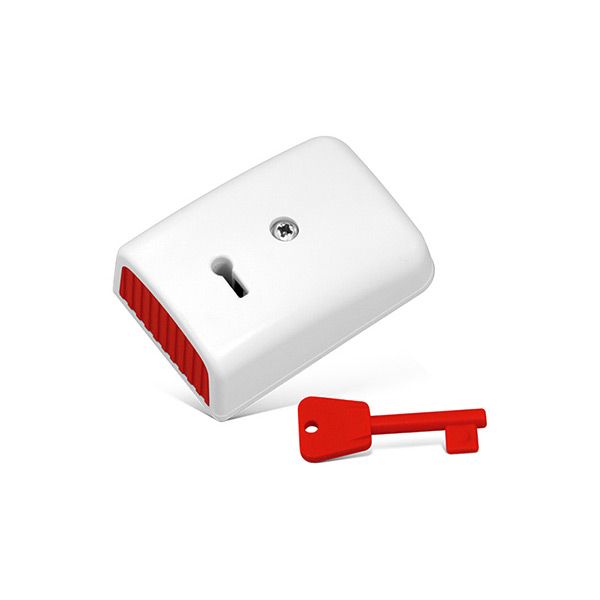

SATEL PNK-1 Panic button with mechanical memory

Panic button with mechanical memory

PNK-1 is a lock anti-robbery button designed to immediately activate the alarm or initiate the reporting procedure of an emergency situation, involving danger to life and property, in the protected building up to the monitoring station. The device is used, for example, in premises that may be exposed to kidnapping, including bank branches, exchange shops, shops, warehouses, offices, etc.

The button is compatible with any alarm control panel equipped with NC relay inputs. A reed switch is installed inside the PNK-1 button, the contacts of which open when the button is pressed. The device is equipped with a spring that releases the button after it is pressed. It is possible to remove the spring and therefore obtain a button with mechanical memory of use. In rooms where several latching panic buttons are installed, this solution allows you to identify the one that triggered the alarm. The button can be returned to its initial position using the attached button.

immediate alarm with notification of the dangerous situation

compatible with any alarm control unit that manages NC type detectors
