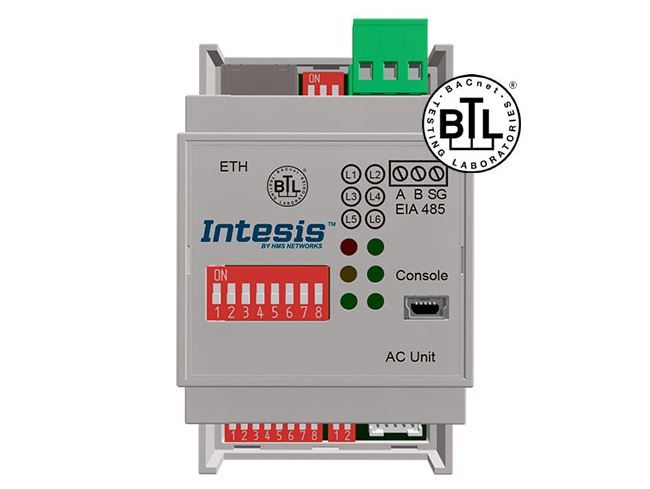

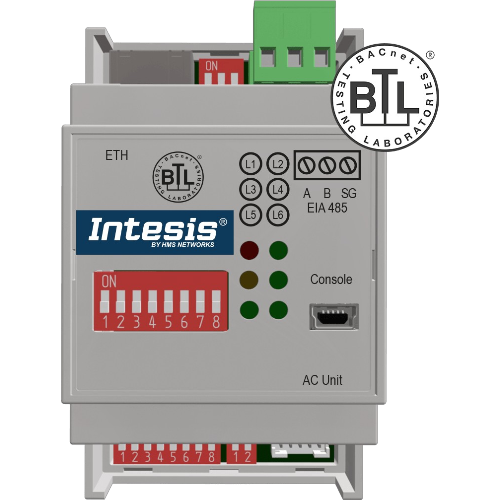

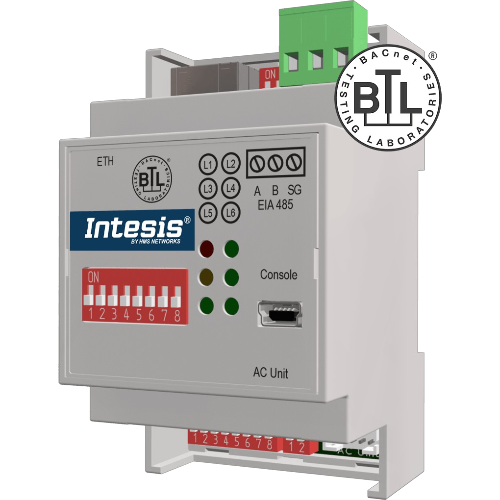

INTESIS INBACPAN001I000 Panasonic Etherea AC unit to BACnet IP/MSTP interface - 1 unit
- MT Code
- INT_INBACPAN001I000
- Manufacturer Code
- INBACPAN001I000
- Brand
- INTESIS
The Inthesis INBACPAN001I000 gateway allows full bidirectional communication between Panasonic Etherea air conditioning units and BACnet/IP or MS/TP networks.
Key Features
This gateway allows you to control and monitor the main functions of the air conditioning unit, such as the operating mode, the fan speed, the temperature setpoint, as well as to monitor errors, alarms and some internal variables.
Installation and Configuration
The installation is quick and simple, requiring only the connection of the gateway to the indoor unit and the configuration of the DIP-SW switches. There is no need for configuration software or external power. The product offers a web interface to easily monitor and control the indoor unit connected to the gateway, including configuring IP network settings.
Functionality
- Support for BACnet IP and BACnet MS/TP.
- Configuration using onboard DIP-SW switches.
- IP network settings available via web interface.
- Quick and easy installation (DIP-SW plug and set).
- No external power required.
- Simultaneous control of the air conditioning unit via the IR remote control and via BACnet IP or MS/TP.
- Small dimensions: 93 x 53 x 58 mm.
- Can be mounted on a DIN rail, wall or inside the indoor unit in some models of air conditioners.
- Abstraction of the properties and functionalities of the air conditioning unit as fixed BACnet objects.
- Occupancy function to save energy.
- Complete control and monitoring of the air conditioning unit from BACnet, including the unit's internal variables, the operating hours counter (for checking filter maintenance) and the indication of errors.
Reducing Energy Consumption and Improving Comfort
Intesis gateways make it possible to significantly reduce energy consumption in buildings, contributing to environmental protection, without compromising user comfort.
Codice Produttore | INBACPAN001I000 |
---|---|
Brand | INTESIS |
user manual inbacpan001i000
|
2.2 MB |
