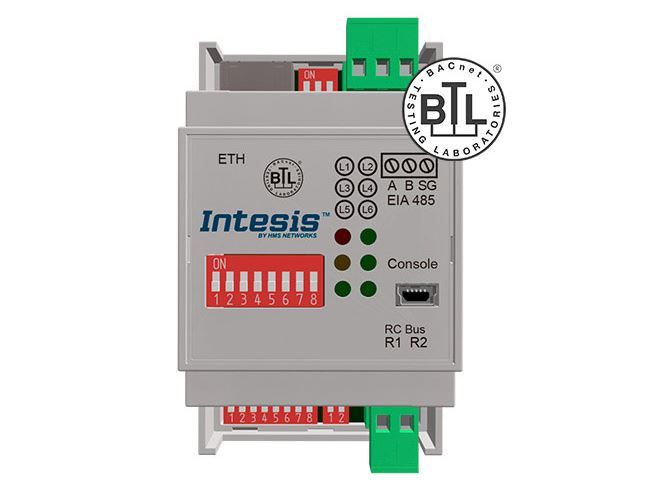

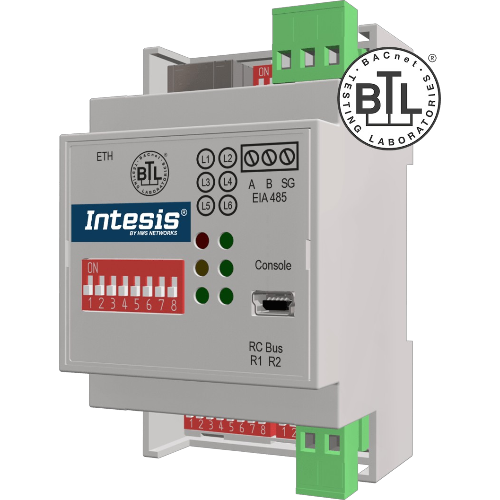

INTESIS INBACPAN001R000 Panasonic ECoi and PACi systems at the BACnet IP/MSTP interface

Inthesis INBACPAN001R000: Interface for Panasonic ECoi and PACi Systems to BACnet/IP and MS/TP

The Inthesis INBACPAN001R000 product is an interface designed to enable bidirectional communication between Panasonic ECOi and PACi air conditioning systems and BACnet/IP or MS/TP networks. This solution makes it possible to fully integrate Panasonic air conditioning systems with BACnet building automation protocols.

Key Features

• Bidirectional communication between Panasonic ECOi and PACi systems and BACnet/IP or MS/TP networks.
• Support for BACnet/IP connections via Ethernet and BACnet MS/TP via EIA-485.
• Interface configuration that can be executed directly through the onboard DIP switch or through a web interface with IP settings and more information.
• The properties and functionality of air conditioning units are abstracted into fixed BACnet objects.
• Occupancy function that helps reduce costs, since HVAC systems are among the main consumers of energy.
• Internal variables, operating hours counter (for maintenance purposes) and error indication.

Control Functionality

The interface allows you to control the air conditioning unit both via BACnet/IP or MS/TP and through your own remote control. This flexibility allows an integrated and customizable management of the air conditioning system.

Nutrition and Integration

The interface is powered directly from the air conditioning unit, so no external power is needed. This simplifies installation and reduces system complexity.
