ELSNER 30152 P04/3-RS485-GPS RS485 weather station - UTC time output

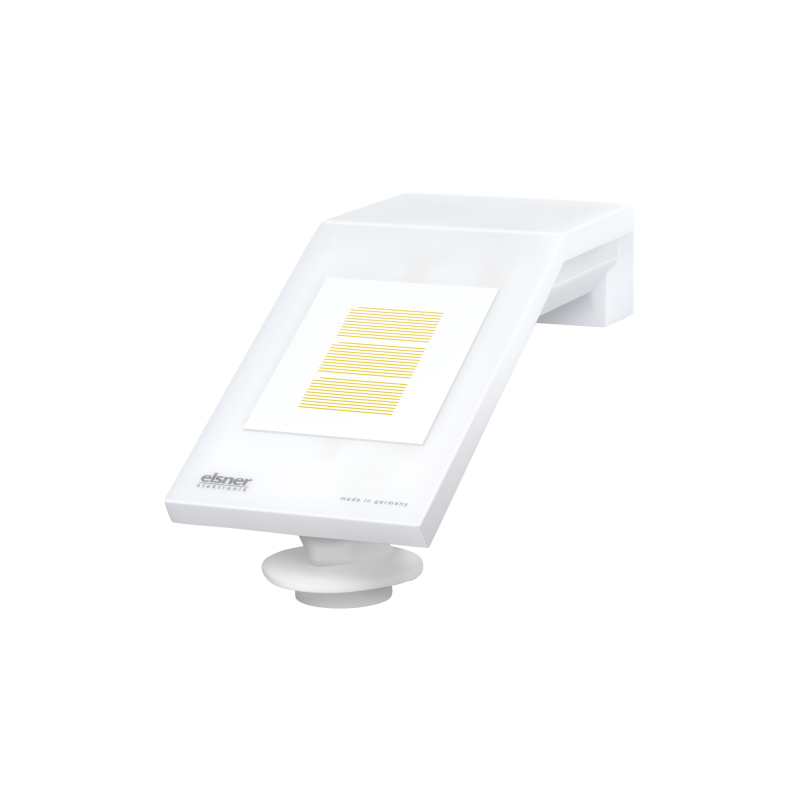

ELSNER 30152 P04/3-RS485-GPS Weather Station

The ELSNER 30152 P04/3-RS485-GPS weather station is a specialized device for measuring various meteorological parameters, designed to meet the needs of professionals in the sector. This weather station integrates sensors for measuring temperature, wind speed, brightness and recognizes the presence of precipitation.

Technical characteristics

The weather station is equipped with a plastic housing, available in white or translucent, and can be mounted on a wall or on a pole. The IP44 protection class guarantees adequate resistance to environmental conditions.

Physical Specifications

• Dimensions: 62 mm x 75 mm x 155 mm
• Total weight: about 90g
• Operating ambient temperature: -30°C... +50°C
• Storage temperature: -30°C... +70°C

Power and Connectivity

• Supply voltage: 24V AC SELV
• Power consumption: ≤ 105mA
• Connector: 4-pin M8
• Connection cable: 4x 0.8 mm, extendable up to 100 m

Sensors and Functionality

• Temperature measurement range: -30°C... +50°C
• Wind speed measurement range: 0... 35 m/s
• Brightness measurement range: 0 Lux... 99,000 Lux
• Recognition of precipitation
• GPS signal reception for time synchronization and positioning

Included Accessories

• Connection cable of about 10 m with plug and connection terminals
• Surface mount junction box (IP 55)
• Threaded clamp Ø 40-60 mm
• 50mm stainless steel screws and 30mm nuts for wall mounting
