ELSNER 30145 P03/3-RS485-GPS RS485 weather station - UTC time output

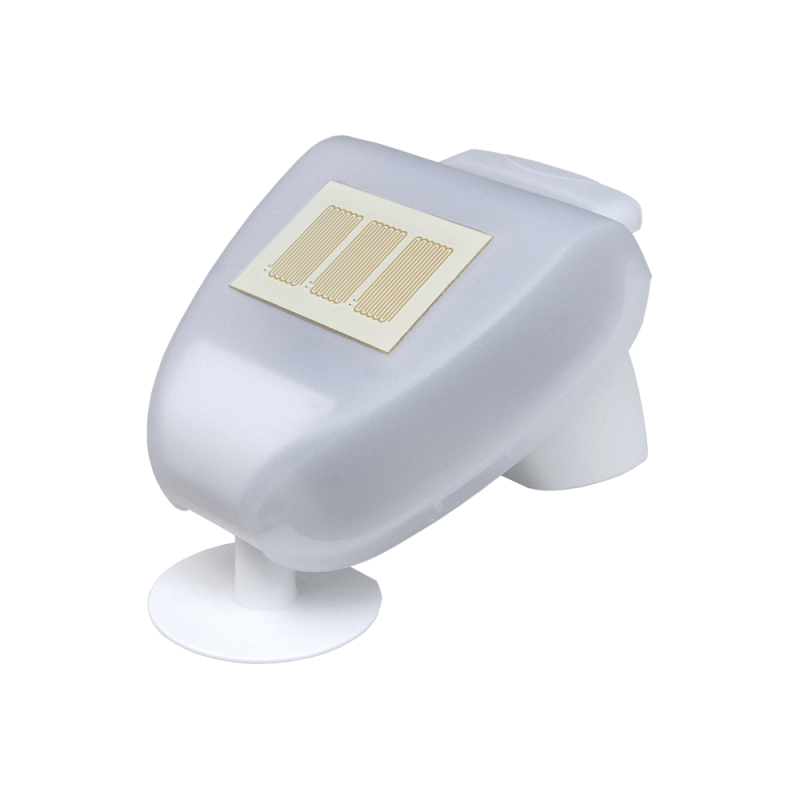

ELSNER 30145 P03/3-RS485-GPS Weather Station

The ELSNER 30145 P03/3-RS485-GPS weather station is designed to provide accurate and reliable measurements of weather conditions. This model includes a GPS receiver and a UTC time output.

Key Features

• Plastic housing, white/matt color, wall mounting.
• Degree of protection IP 44.
• Dimensions: approximately 96 × 77 × 118 mm (W × H × D).
• Weight: about 160g
• Ambient operating temperature: -30°C to +50°C, storage temperature: -30°C to +70°C.
• Supply voltage: 24 V DC ± 10%.
• Connector: screw clamp
• Conductor cross-section: solid or thin-wire conductors from 0.5 to 1.0 mm².
• Stripping length: 6 mm.
• Maximum current: 130 mA, residual ripple 10%.

Meteorological Measurements

• Brightness measurement with three separate sensors for east, south and west. Recognition of dawn and dusk with special filters.
• Wind speed measurement using a non-wearing electronic sensor. No damage from storms or hail like in mechanical anemometers.
• Temperature measurement: -40°C to +80°C.
• Heated rain sensor (1.2 W): no false signals due to fog or dew. It dries quickly after the rain ends.
• Wind speed measurement: 0 to 35 m/s.
• Brightness measurement: 0 to 99,000 lux.

Output and Communication

• Data Output: RS485
• Data sending cycle: 1 second.
• UTC time output thanks to the integrated GPS receiver.
