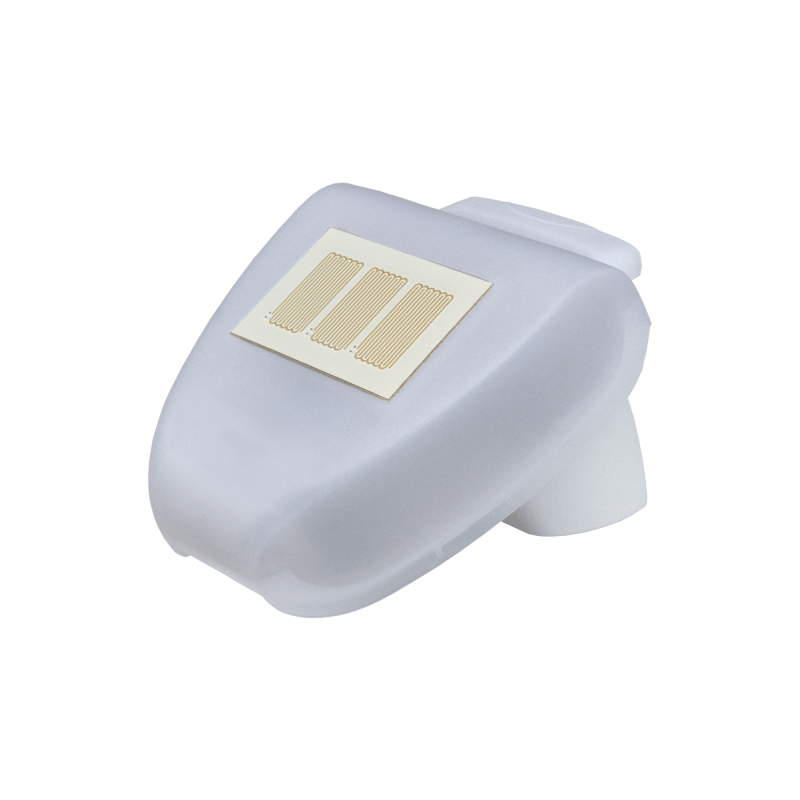

ELSNER 30107 P03/3

The ELSNER 30107 P03/3 model is a weather station designed to replace the old P00 (3-wire), P01 and P02 stations used in the WS1, WS10, WS20, WS1000 greenhouse control systems, in the FS100 facade control and in the PS8A evaluation unit.

Key Features

This weather station offers a series of high-precision technical features:

Brightness Measurement

• Brightness measurement with three separate sensors for east, south and west.
• Recognition of dusk and dawn thanks to special filters.

Wind Measurement

• Electronic, silent and reliable wind force measurement, even during hail, snow and sub-zero temperatures.
• Record of turbulent air and anabolic winds in the vicinity of the weather station.

Temperature Measurement

• Temperature measurement with a measurement range from -40°C to +80°C.

Precipitation Detection

• Heated rain sensor (1.2 watts) to avoid false signals due to fog or dew. It dries quickly after the end of the precipitation.

GPS receiver

• Integrated GPS receiver that provides the CET (Central European Time) time with automatic adjustment of daylight saving time.

Technical Specifications

The technical specifications of the product are as follows:

Accommodation and Assembly

• Housing material: plastic.
• Color: white/translucent.
• Mounting: wall or pole.
• Degree of protection: IP 44.

Dimensions and Weight

• Dimensions: approximately 96 × 77 × 118 mm (W × H × D).
• Weight: about 160g

Ambient Temperature and Power Supply

• Operating temperature: -30°C to +50°C.
• Storage temperature: -30°C to +70°C.
• Supply voltage: 24 V DC.
• Connector: screw terminal.
• Conductor cross-section: solid or wired conductors up to 0.5... 1.0 mm².
• Stripping length: 6 mm.

Other Specifications

• Heated rain sensor power: about 1.2W
• Temperature measurement range: -40°C to +80°C.
• Wind measurement range: 0... 35 m/s.
• Brightness measurement range: 0 lux... 99,000 lux.
