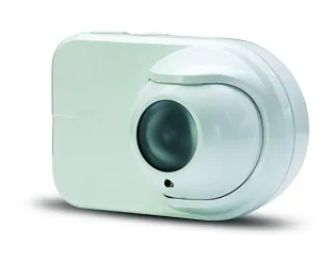

NOTIFIER OSI-10 OSID Receiving Unit

OSID (Open-area Smoke Imaging Detection) Receiver Unit with 7th coverage. It constitutes a technological innovation in the field of linear optical detection. OSID uses a double light beam with two different wavelengths and a sensitive element capable of a wide field of view. These characteristics give the detector high operational reliability as well as a simplification of the installation and alignment phases. Minimum detection coverage 30m and maximum 150m. Three alarm thresholds. OSID is able to detect the attenuation. generated by the presence of smoke particles. on 2 different beams of light emitted by an emitter located in the area to be protected. The receiver (imager) is equipped with a sensitive element with an effective field of view. Temperature. from -10°C to 55°C. Current consumption. nominal (at 24 V DC). 8 mA (1 emitter). Dimensions. 208 mm x 136 mm x 96 mm. EN54-12 certificate.
