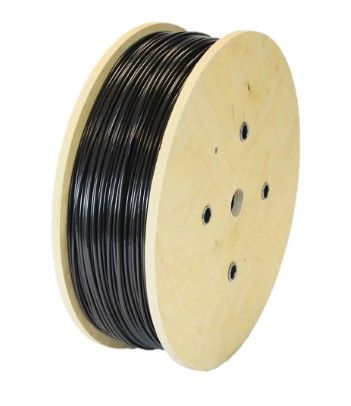

ARITECH FIRE AD68N-0500 Non-resettable linear heat detector (digital thermosensitive cable)

Non-resettable linear heat detector (digital thermosensitive cable). operating temperature 68°C. UL/ULC approved. Maximum ambient installation temperature 45°C. Nylon outer protective sheath. Black color. Delivered in 500 meter skeins

.

Generality
The AD68N-0500 digital thermosensitive cable is a non-resettable LHD (Digital Linear Heat Detection) linear heat detector with an alarm threshold at a fixed temperature equal to 68 °C (155 °F). It has an external protective sheath in NYLON which has excellent resistance to UV rays that allows it to be used in indoor and outdoor applications. It is supplied in 500 m reels.

The line of thermal-sensitive AD cables allow the detection of heat in a very simple way and can be used in many applications where other types of sensors are not suitable.

Operation The line
of AD digital thermosensitive cables consists of a pair of intertwined trimetallic conductors coated with special temperature-sensitive polymers. When the alarm temperature, for which they were designed, is reached, the polymer that insulates the two conductors softens, the tension of the intertwined conductors allows them to come into contact, generating a short circuit on the line. The operation as a simple switch allows it to be used with any monitoring device. Through the use of alarm resistors and end-of-line resistors, the sensor cable is able to report the alarm and fault condition (line opening) to any monitored entrance, such as a conventional fire detection zone or to an

addressable interface module.

Control module (optional) The thermosensitive cable also has a two-zone control module capable of identifying the position in meters where the digital thermosensitive cable intervened (alarm).

Mounting brackets for all applications
A wide range of mounting brackets make it possible to properly install the thermosensitive cable. The clips provide thermal insulation and keep the cable at the correct distance from the channels, ceiling and walls

.
