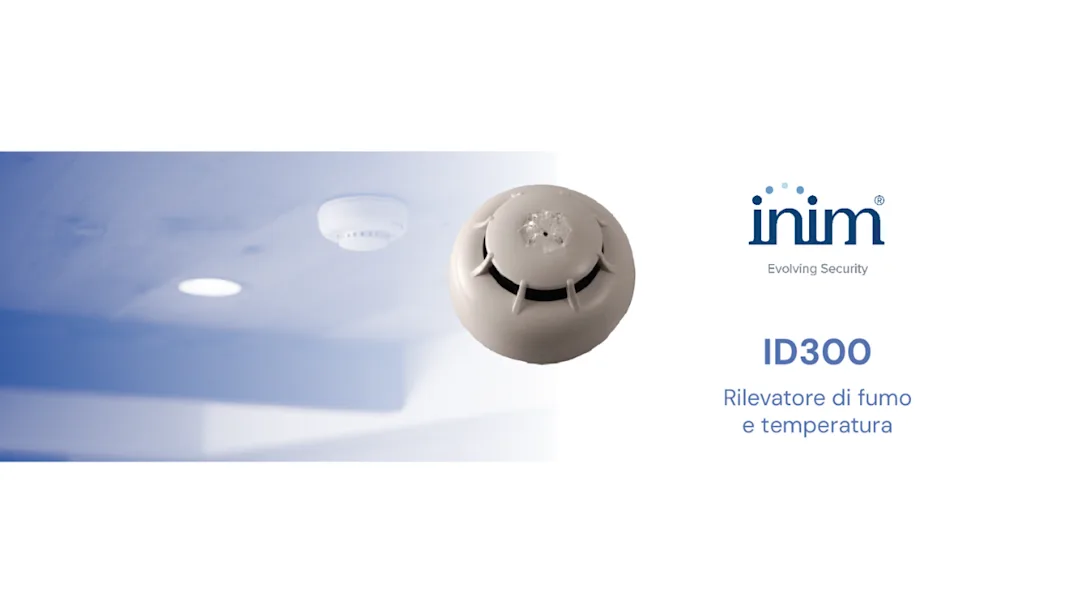

ID300 by Inim Electronics: multisensor detector for advanced fire protection

ID300 by Inim Electronics

Multisensor Detector for Advanced Fire Protection

The ID300 multisensor detector by Inim Electronics represents an advanced solution for fire detection, combining the ability to detect both smoke and temperature in a single device. This combination ensures exceptional sensitivity in detecting various types of fires, including critical ones like flammable liquid fires with minimal smoke emission, while significantly reducing false alarms.

Technical Features

• VERSA++ Technology: The ID300 features VERSA++ technology, allowing each sensor to be configured according to specific usage conditions. Using tools like the EDRV1000 driver, you can connect to a line of detectors and perform a complete diagnosis for each, check real-time readings, inspect the contamination level of the optical chamber, and adjust sensitivity and operating modes.

• Internal Memory: Each detector contains non-volatile memory, allowing you to view the smoke and temperature levels measured during the period leading up to the last detected alarm, facilitating post-event analysis.

• Innovative Optical Chamber Design: The ID300 features an innovative optical chamber design, with a sealed top and a protective mesh against insect ingress with 500 µm openings, ensuring increased reliability and durability over time.

• Bicolored LED Indicators: The detector is equipped with a two-color LED: red for alarm and green for flashing (optional) in standby or for localization via manual activation from the programmer.

Operating Modes

The ID300 offers various operating modes, selectable locally via the EDRV100 driver:

• PLUS Mode: Pre-set from the factory, this mode signals an alarm if either the smoke or temperature threshold is exceeded. Additionally, in case of a temperature rise, the smoke detection sensitivity is set to maximum, allowing the detection of even the most critical fires, such as alcohol or similar liquid combustion.

• OR Mode: The detector signals an alarm if either the smoke or temperature threshold is exceeded. This mode, characterized by moderate sensitivity, can detect both fires with smoke and low heat emission, as well as fires with minimal smoke and high heat production, such as chemical substance fires.

• AND Mode: The detector signals an alarm only if both the smoke and temperature thresholds are exceeded simultaneously. This mode, with low sensitivity, helps minimize false alarms. However, due to its low responsiveness, careful consideration of conditions is required before use.

• SMOKE Mode: The detector operates exclusively as a smoke detector, similar to the ID100 model.

• TEMPERATURE Mode: The detector operates exclusively as a temperature detector, similar to the ID200 model.

Technical Specifications

• Power Supply: 10-30 V DC.

• Standby Current: 90 µA.

• Alarm Current: 40 mA.

• Remote Output Current: Maximum 14 mA.

• Operating Temperature: From -5°C to +40°C.

• Relative Humidity: Up to 95% without condensation.

• Dimensions: Height 54 mm, Diameter 110 mm.

• Weight: 160 g with base, 90 g without base.

Applications and Installations

Due to its versatility and selectable operating modes, the ID300 is suitable for installation in a wide range of environments:

• Shops and Shopping Centers: Where timely detection is essential to ensure the safety of customers and staff.

• Offices and Public Buildings: To protect areas with high occupant density and sensitive electronic equipment.

• Industrial Facilities: Particularly in areas where fires with low smoke emission but high heat production can occur.

• Warehouses and Storage Areas: Where the presence of flammable materials requires reliable smoke and temperature detection.

• Healthcare and Hospitality Facilities: To ensure safety in environments where evacuation may be complex, while also reducing false alarms that could cause panic or distress.

The flexibility in operating modes and the ability to customize sensitivity make the ID300 ideal for adapting to the specific needs of any environment, ensuring effective and reliable protection.

Availability and Technical Support

The ID300 multisensor detector is available at MT Distribuzione!
Our technical team is available to provide detailed information and personalized consultations to meet your specific needs. We invite you to visit us or contact us at info@mtdistribuzione.it for further details and assistance.

The MT Distribuzione Team
