SATEL INT-FI Multimode Fiber Optic Bus Converter (needs at least 2 pieces - master and slave)

Multimode Fiber Optic Bus Converter (needs at least 2 pieces - master and slave)

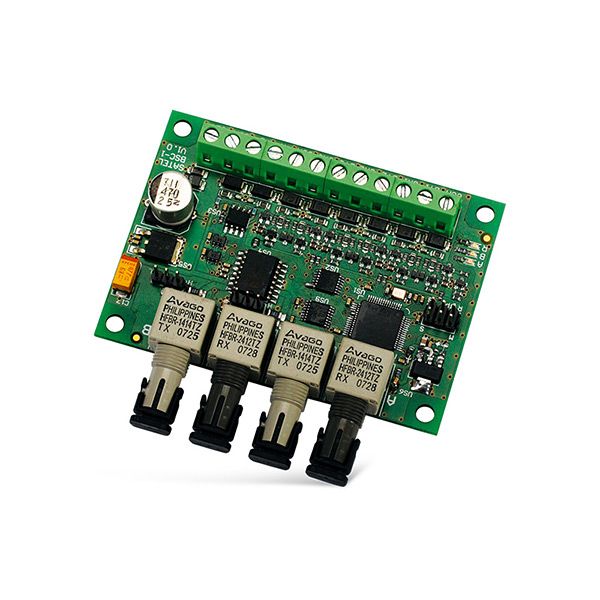

The INT-FI converter is used to convert and transmit data via fiber optic cables. It provides high immunity to communications with potential interference with complete galvanic separation of connected devices. It is designed to work with the keypad/expander buses of the INTEGRA series control panels, as well as the RS-485 bus of the ACCO access control system. INT-FI is equipped with 4 sockets to connect two pairs of optical fibers and terminals to connect the signals of three communication buses of the INTEGRA control units (one keypad bus, two expansion buses) or an RS-485 bus of the ACCO access control system .

Depending on the jumper settings on the PCB, the INT-FI can operate in a variety of configurations, the selected one being indicated by the LEDs. Using the appropriate type of network connection (cascade) allows you to increase the transmission range up to 4 km, the maximum distance between the two converters is 2 km.
