WEINZIERL 5347 Relay for 5321 Multi IO Extension 590 Standard

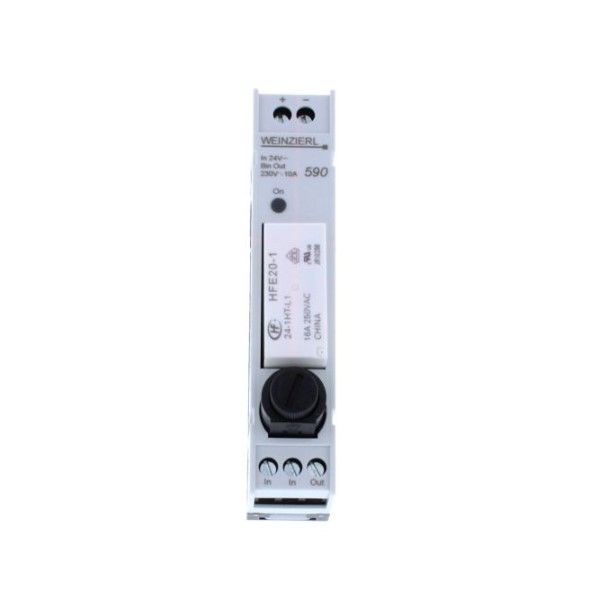

The Multi IO 590 extension relay, identified with article number 5347, represents an energy saving alternative to standard coupling relays that are commercially available. This device is designed to be used as a mono-stable relay, but internally it works like a bi-stable relay, thus reducing the holding current by up to 95%.

Technical characteristics

The relay is equipped with an integrated fuse to protect high-quality equipment.

Contact Material

The contacts are made of AgSnO2.

Power and Output

The input is 24 V, while the output is 230 V/16 A, bi-stable.

Delivery Unit

The delivery takes place in packs of 10 pieces.

Mechanical Data

The device is housed in a plastic enclosure and mounted on a DIN rail, with a width of 1 module (18 mm) and a weight of about 50 g.

Indicators and Fuse

A green LED indicates the status of the relay. The fuse is a 10 A 5x20mm glass type.

Connectors

The connectors are screw terminals: 2 poles for 24 V input and 3 poles for 230 V output.

Input and Output

The input has a 24 V signal voltage and a holding current of less than 2 mA. The output is protected by a 10 A fuse and the relay type is 250 V/16 A, bi-stable.

Switching Power Reduction

Depending on the type of load (capacitive or inductive), the switching power can be significantly reduced.
