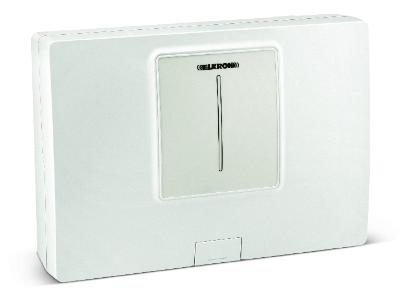

ELKRON 80MP5J00111 MP504TG-CP - Control panel with 4 inputs expandable to 12.

Brand: ELKRON. Item: MP504TG-CP. Alarm control unit with 4 inputs expandable to 12, with integrated PSTN telephone transmitter, 4 basic programmable inputs + 1 24h input; expandable up to 122 programmable outputs (1 relay + 1 OC 150mA) expandable to 5 Partializable into 2 sectors 1 Bus line for the connection of: max. 2 LCD or LED keypads, max. 4 inserters Management of 24 user codes (from 4 to 6 digits) History of 500 events Weekly time programmer, 8 daily commands Up to 4 n. telephones for sending alarms Remote control via modem Digital transmission of numerical protocols and/or modem Speech synthesis interface for sending alarm messages DTMF commands for remote system management Ethernet interface for connection of the control unit to a LAN network or to an ADSL modem USB interface for connection to a PC, local programming and for data saving/recovery, via USB stickHl-CONNECT software application programming and remote management (Windows Vista® Windows 7® compatible)White ABS containerHousing battery: 12 Vdc - 7 AhSwitching power supply. 1.5 ADimension: (HxWxD) 238 x 340 x 90 mm
