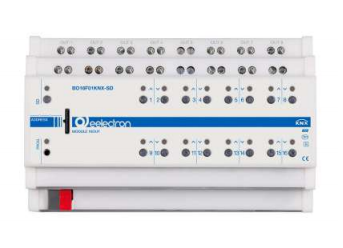

EELECTRON BO16F01KNX-SD UNIVERSAL DIN MODULE 16 OUT PLUS + SD CARD

<p/the EELECTRON BO16F01KNX-SD device is a universal DIN module designed to integrate perfectly into domestic and industrial automation systems based on the KNX protocol. This device offers exceptional versatility thanks to its 16 16A-230V AC relay outputs, which can be configured for different applications.

Output Configurations

• 16 outputs for controlling lights and loads
• 16 channels for PWM valve control
• 8 channels for controlling shutters and blinds
• 8 channels for 3-way valve control
• 4 2-tube fan coil actuators

Special Features

The device allows you to combine 2 or 3 relays with logical interlock for the control of 4-tube or 3-speed fan coils. In addition, it is possible to combine relay groups (up to 8) for special functions with logical interlock.

Save and Restore Features

<p-The BO16F01KNX-SD version includes a microSD card reader, which allows you to save the device's programming and restore it to an identical device. This function avoids the need for field programming or allows a quick recovery in the event of a fault.

Technical characteristics

The device is powered via the EIB/KNX bus with a voltage between 21 and 32 Vdc. Its modular design makes it easy to install in standard 3-module boxes.
