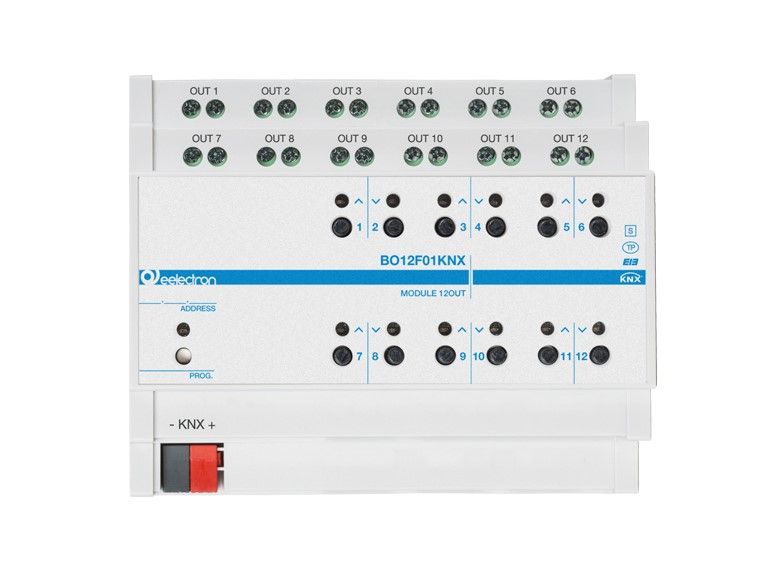

EELECTRON BO12F01KNX-SD UNIVERSAL DIN MODULE 12 OUT PLUS + SD CARD

<p_The EELECTRON BO12F01KNX-SD device is a highly versatile KNX actuator, designed to be installed on a DIN rail and integrated into the EIB/KNX protocol. This device offers 12 16A-230V AC relay outputs, which can be configured in different modes to meet specific building automation needs.

Output Configurations

• 12 outputs for controlling lights and loads
• 12 channels for controlling PWM valves (solenoid actuators)
• 6 channels for controlling shutters and blinds
• 6 channels for 3-way valve control
• 3 2-tube fan coil actuators or 2 4-tube fan coil actuators

Special Features

It is possible to combine 2 or 3 relays with logical interlock for the control of 4-tube or 3-speed fan coils. In addition, groups of relays (up to 6) can be combined for special functions using logical interlocking.

Additional Features

• Manual buttons for local activation of relays
• LED for indicating the operating status

Version with microSD Card

<p-The BO12F01KNX-SD version includes a microSD card reader, which allows you to save the device's programming and restore it to an identical device. This function avoids the need for on-site programming or allows for quick recovery in the event of a fault.

The BO12F01KNX-SD device is ideal for residential, hotel and building applications, offering intelligent home automation solutions for automation and energy savings.
