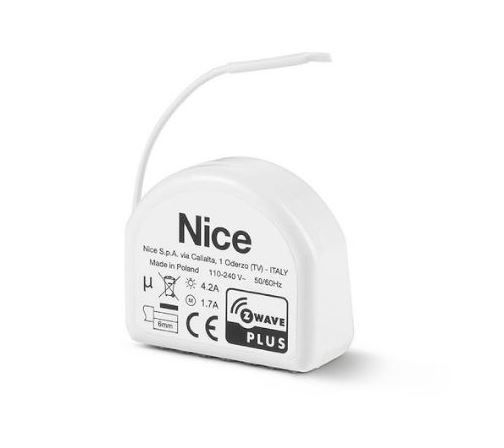

NICE ROLL-CONTROL Module for controlling tubular motors

Module for controlling tubular motors

Roll-Control is a module that allows you to control alternating current tubular motors, such as: electric shutters, awnings, Venetian blinds and shutters.

The module allows you to manage the exact position of the motors and, in the case of Venetian blinds, to control the movement of the slats.
The device has the function of measuring energy consumption and active power of the current.

Roll-Control allows you to control connected devices both via the Z-Wave network and via a switch or button connected directly to it

Main features:
• Compatible with Z-Wave and Z-Wave Plus control systems;
• Supports the Z-Wave network Security Modes: S0 with AES-128 encryption and S2;
• Authentication with PRNG encryption;
• Can be installed with tubular motors with electronic or mechanical limit switches;
• Energy consumption measurement functionality;
• Works with various types of up and down buttons. with fixed positions, momentary toggle positions or specific for roller shutters;
• Can be installed in wall switch boxes

Characteristics:
- Input power: 220-240V~50Hz;
- Output power: 50-250W (resistive load);
- Operating temperature: 0 ÷ 35 °C;
- For installation in wall boxes: Ø >= 50, depth >= 60 mm;
- Radio protocol: Z-Wave (500 series);
- Radio frequency: 868.4 or 869.8 MHz (EU);
- Radio range: up to 40m (depending on the structure of the building);
- Complies with European directives: RoHS 2011/65/EU - RED 2014/53/EU;

- Dimensions: 42.5 x 38.25 x 20.3 mm
