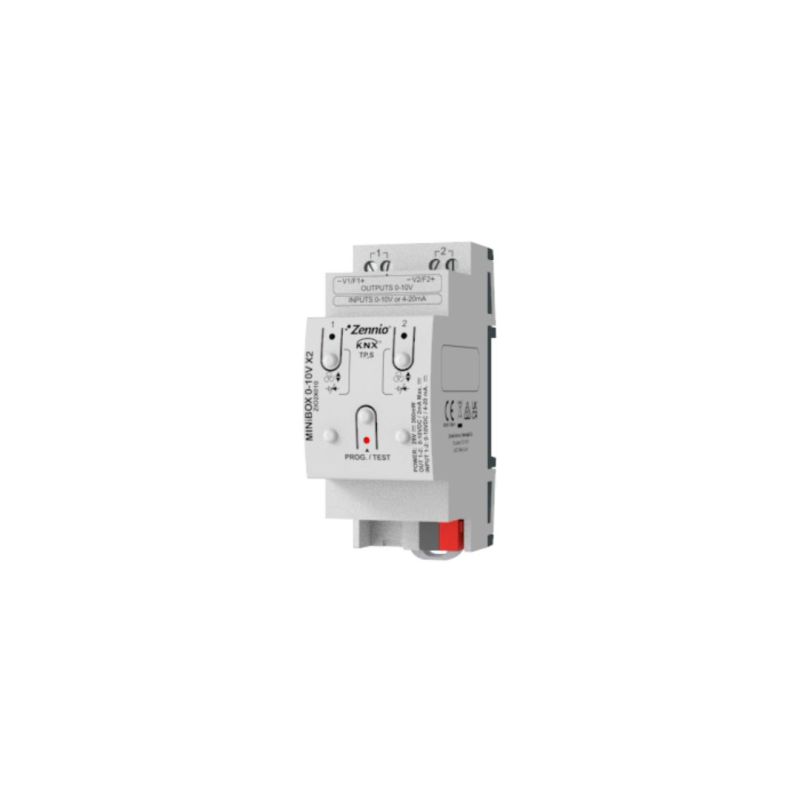

ZENNIO ZIO2X010 MiniBox 0-10V X2 - Multifunctional actuator with 2 analog input/output channels 0-10 V

The MiniBox 0-10V X2, code ZIO2X010, is a multifunction actuator designed to be mounted on a DIN rail, occupying a space of 2 DIN. This device is equipped with 2 analog channels that can be configured as 0-10 V inputs or outputs or as 4-20 mA inputs.

Key Features

• 2 analog channels that can be configured individually or together.
• Support for the control of a two-tube fan coil system, where both the fan and the valve are controlled with 0-10 V signals.
• Manual control by means of buttons and indication of the status of the channels through LEDs.
• Including 10 logic functions and 2 thermostats.

Configuration and Use

Each channel can be configured independently to suit different applications, making the MiniBox 0-10V X2 highly versatile in controlling air conditioning and heating systems.

Additional Functionalities

• Support for integration with ETS5/ETS6 software.
• Compatibility with KNX standards to ensure optimal interoperability with other devices in the system.

This actuator is ideal for industry professionals who require a robust and flexible solution for controlling air conditioning and heating systems.
