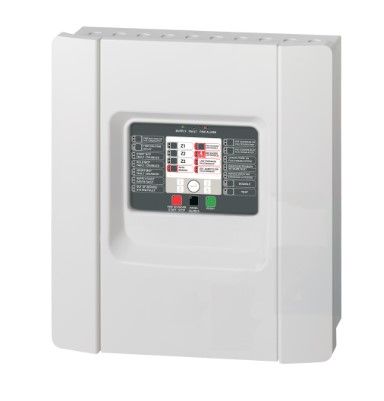

ARITECH FIRE 1X-X3-10 Microprocessor fire detection and extinguishing control unit

Microprocessor fire detection and extinguishing control unit equipped with 3 detection zones and 1 extinguishing channel. Internal space for housing 2 12V/7.5Ah batteries. EN 54-2. 54-4 and EN12094

General Certification
The fire detection units of the 1X range are able to guarantee simple but extremely advanced solutions for applications in small and medium-sized conventional systems. They are characterized by a contemporary design that can adapt to any environment. The curvature of the front door further characterizes its shapes, making it an important distinctive sign. The operator controls are available on a dedicated black Lexan space located on the front panel.

With the possibility of supporting different lines of conventional detectors and accessories, these simple to program and configure systems offer the widest versatility of use, which is highlighted by the countless benefits for system users, installers and maintainers.

The 1X-X3
control unit is a conventional fire detection and control unit for extinguishing systems. It comes complete with 3 detection zones capable of supporting up to 32 detectors per zone. These zones can be configured for shutdown in a single zone, double zone and in any combination of zones. The control unit is also equipped with supervised outputs for first and second level signals as well as optical alarm indications and actuator activation. Standard relay outputs are available in accordance with EN54 standards and for status reporting. There are also multiple system control inputs

.

Options
The control unit optionally has 2 different types of relay modules, the first with 4 standard relays and the second with 4 supervised relays. With the use of these optional modules, the control unit can be expanded to a maximum of 16 outlets

.

Standards & Approvals The product has the following certifications:

• EN 54:2, EN 54:4 and CE Approval • CPD Certification • EN12094-1 Certification • WEEE Compliant • RoHS Compliant
