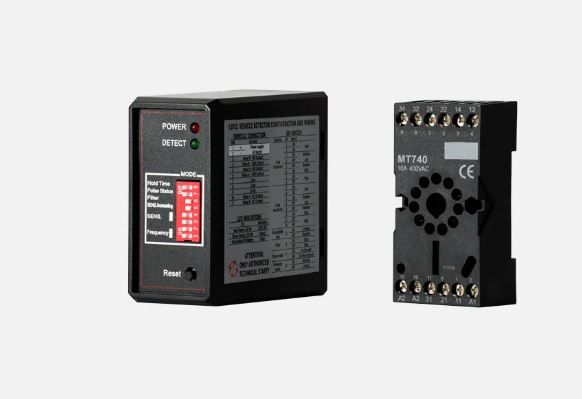

DOMOTIME LD112 Metal mass detector - 24 Vac/dc single-channel magnetic loop sensor

DOMOTIME LD112 Metal mass detector - 24 Vac/dc single-channel magnetic loop sensor

MT Code
DME_LD112
Manufacturer Code
LD112
Brand
DOMOTIME
extra sconto di benvenuto
Description

Metal mass detector - 24 Vac/dc single-channel magnetic loop sensor

The Domotime LD112 single-channel magnetic coil detector is able to manage a magnetic coil and provide an output signal when a reasonably sized metal body (car, motorcycle, etc.) passes over the coil itself. It therefore also allows the control of devices such as traffic lights, gates, barriers, etc. The detector is equipped with two relays: Relay A: when the loop detects a vehicle, the detector keeps relay A activated as long as the vehicle is present on the loop itself; Relay B: When the loop detects a vehicle, the detector switches relay B with a pulse even if the vehicle continues to be detected on the loop itself. The detector is also adjustable in frequency and sensitivity. Adjusting the frequency allows you to install multiple detectors side by side without causing interference. The sensor also has a 'frequency filter' function that allows you to change the frequency independently in case you encounter interference from other devices. Adjusting the sensitivity allows the sensor to be selective based on the size of the metal body detectable by the loop. The detector is equipped with an “automatic sensitivity increase” function that automatically changes the sensitivity under certain circumstances. Use it with Domotime LDC06 and LDC10 magnetic coils.

Data Sheet
Codice a barre 8000002632386
Codice Produttore LD112
Brand DOMOTIME
Download
LD112 1
659.6 kB
