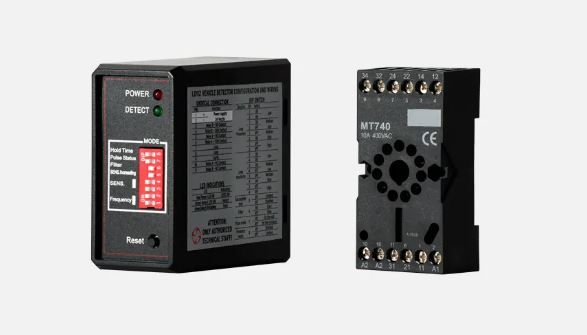

DOMOTIME LD110 Metal mass detector - 230 Vac single-channel magnetic loop sensor

DOMOTIME LD110 Metal mass detector - 230 Vac single-channel magnetic loop sensor

MT Code
DME_LD110
Manufacturer Code
LD110
Brand
DOMOTIME
extra sconto di benvenuto
Description

Metal mass detector - 230 Vac single-channel magnetic loop sensor

Domotime LD112 single-channel magnetic coil detector is able to manage a magnetic loop and provide an output signal when a discrete metal body (car, motorcycle, etc.) passes through the coil itself. It therefore also allows the control of devices such as traffic lights, gates, barriers, etc. The detector is equipped with two relays: Relay A: When the loop detects a vehicle, the detector keeps Relay A switched on as long as the vehicle is present on the loop itself; Relay B: When the loop detects a vehicle, the detector switches Relay B with a pulse even if the vehicle continues to be detected on the loop itself. The detector is also adjustable both in frequency and in sensitivity. The frequency setting allows you to install multiple detectors side by side without causing interference. The sensor also has a 'frequency filter' function that allows you to alter the frequency independently in case you encounter interference from other devices. The sensitivity setting allows the sensor to be selective with respect to the size of the metal body detectable by the coil. The detector has an “automatic sensitivity increase” function that automatically alters sensitivity under certain circumstances.

Data Sheet
Codice a barre 8000002632379
Codice Produttore LD110
Brand DOMOTIME
Download
LD110 IT EN
466.4 kB
