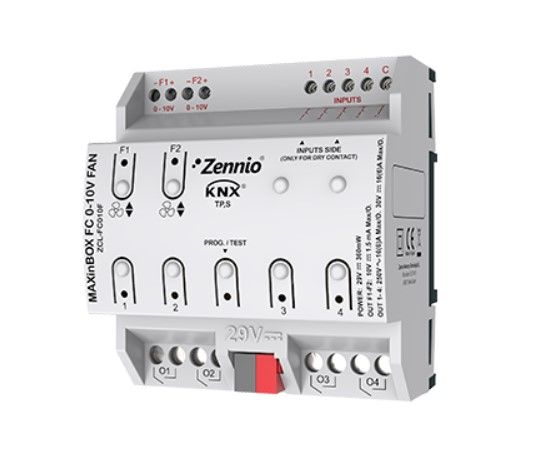

ZENNIO ZCL-FC010F MaxInbox FC 0-10V FAN - FAN-COIL controller for up to two 2 or 4-tube units with 0-10 VDC fan speed control signal

The ZENNIO MaxInbox FC 0-10V FAN controller (ZCL-FC010F) is designed to control up to two fan coil units with 2 or 4 tubes, equipped with on/off valves and a 0-10 VDC fan speed control signal.

Key Features

This controller is mounted on DIN rails (4.5 units) and offers a series of features that make it ideal for HVAC applications.

Exits and Inputs

• 4 multifunctional outputs (16 A C-Load) that can be used to control the on/off valves of fan coil units or for other purposes.
• 4 multifunctional analog-digital inputs configurable as binary inputs for sensors and relay buttons, as inputs for temperature probes or as inputs for motion sensors.

Control Functionality

• Includes 2 thermostats for precise temperature control.
• 10 logical functions to customize the behavior of the controller based on the specific needs of the installation.
• Manual control of outputs and status indication through LEDs.

accessories

• Temperature probe and motion sensor included as standard accessories.

Applications

The MaxInbox FC 0-10V FAN controller is particularly suitable for controlling air conditioning systems that require precise management of the fan speed and control valves.

Installation and Use

Its installation on DIN rails makes it easy to integrate it into any existing control system. The manual control functions and the LED status indication make the use and maintenance of the controller simple and intuitive.
