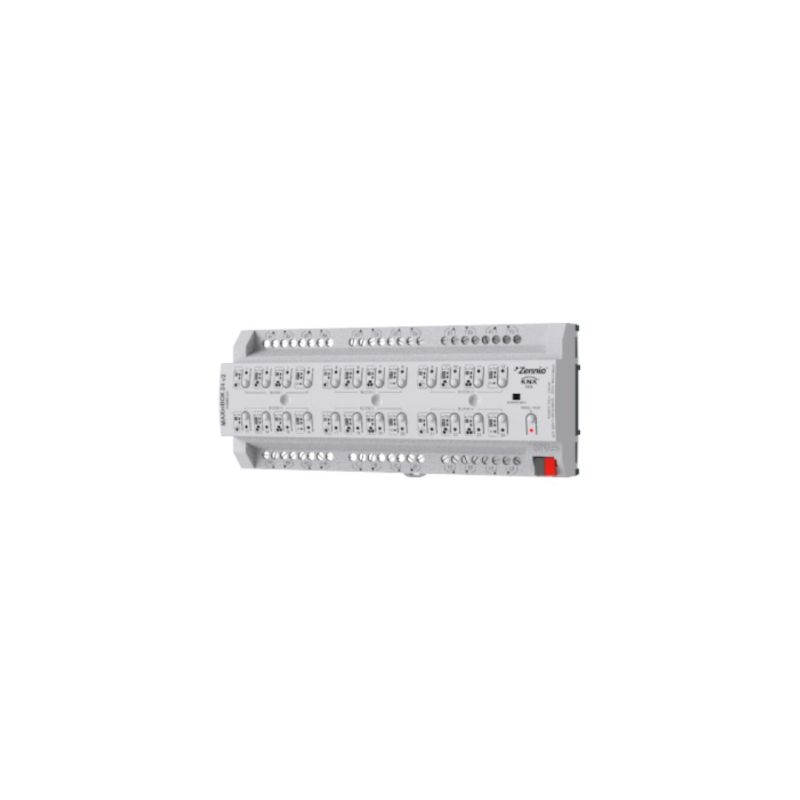

ZENNIO ZIOMB24V2 MaxInbox 24 v2 - KNX multifunction actuator with 24 DIN rail outputs

The Zennio MaxInbox 24 v2 is a multifunctional actuator for mounting on a DIN rail, designed to meet the most diverse needs in the field of domestic and industrial automation.

Key Features

This actuator offers multiple configurations, allowing you to manage up to 12 channels for shutters, 24 independent outputs of 16 A each (supports capacitive loads) and up to 6 control blocks for 2-tube fan coils.

Configurations and Outputs

• Up to 12 channels for roller shutters
• Up to 24 independent outputs of 16 A each
• Up to 6 control blocks for 2-tube fan coils

Control and Indications

The actuator allows manual control of the outputs thanks to the buttons on the cover. The LED indicators show the status of the outputs, ensuring immediate visibility of the system status.

Logical Functions

It includes 30 independent logic functions to expand the versatility of automation in the KNX system.

Accessories and Integration

It comes with AC/DC adapters for roller shutters, making it easy to integrate with different types of systems.

ETS compatibility

It is compatible with ETS5/ETS6, ensuring easy integration and configuration within the KNX system.
