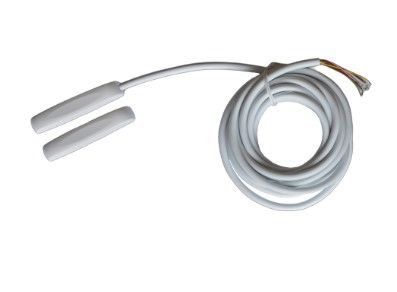

ARITECH INTRUSION DC418 Magnetic contact daily installation. with cable

Magnetic contact daily installation. with cable. high security. IP67. EN Grade 4 certificate.

The DC418 magnetic detector, certified according to the requirements of EN 50131-2-6 grade 4 and VdS class C, allows the monitoring of the contactless opening of doors and windows in accordance with

Compared to other high-security magnetic detectors, this product also has improved external field monitoring, which can be used to detect an abnormally large difference between the applied code and the learned code.

The ability to learn this detector on one of eight different magnet variants at the installation site guarantees a higher level of safety and allows the system to remain relatively flexible with respect to tolerances. The code is assigned at the installation site and is not already defined for the detector at the factory. If a magnetic component is lost or damaged, simply replace it with a new one and then learn the detector to the new component.

According to the EN standard, the connecting cables are suitable for connecting an alarm circuit. The maximum number of detectors that can be connected serially for evaluation is based on the maximum allowed values of the relevant alarm system.

electronic switches have no potential compared to the direct current coming from the rest of the circuit, and are closed when not in use.
