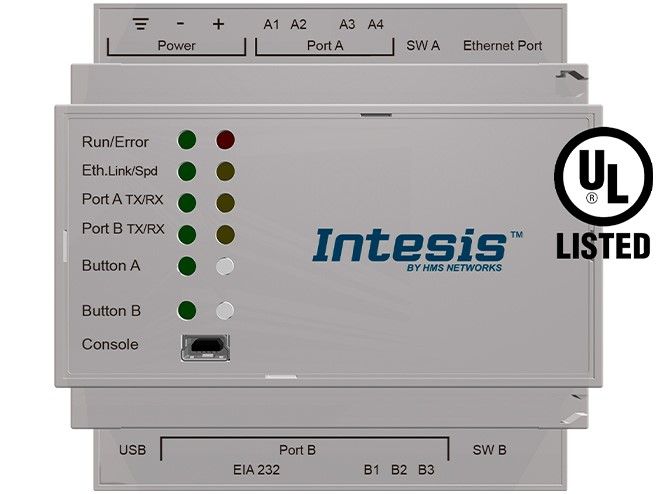

INTESIS INMBSMEB0100000 M-BUS to Modbus TCP and RTU server gateway - 10 devices

The INTESIS INMBSMEB0100000 gateway is designed to integrate M-Bus devices with building management systems (BMS) or controllers based on Modbus TCP and Modbus RTU. This device makes it possible to make the registers and resources of the M-Bus devices accessible as if they were an integral part of the Modbus system and vice versa.

Key Features

• Support for up to six simultaneous Modbus TCP clients.
• Compatibility with both Modbus RTU and Modbus TCP protocols.
• Presence of an integrated M-Bus level converter, eliminating the need for an external converter.
• Scan function for the automatic identification of devices and the discovery of M-Bus logs.

Integration and Configuration

The integration is facilitated by the use of the Inthesis MAPS configuration tool, which allows you to create projects with predefined templates, configure the necessary parameters, enable the desired signals and verify the communication between the gateway and the system.

Templates can be imported and reused multiple times, significantly reducing commissioning time.

Ports and Data Rates

• 1 console port
• 1 M-Bus port
• 1 Modbus TCP port
• 1 Modbus RTU port
• 1 USB port
• Data rate: 10 MB/s, 100 MB/s

This gateway is ideal for industry professionals who need a reliable and easy-to-configure solution for integrating M-Bus devices into Modbus-based control systems.
